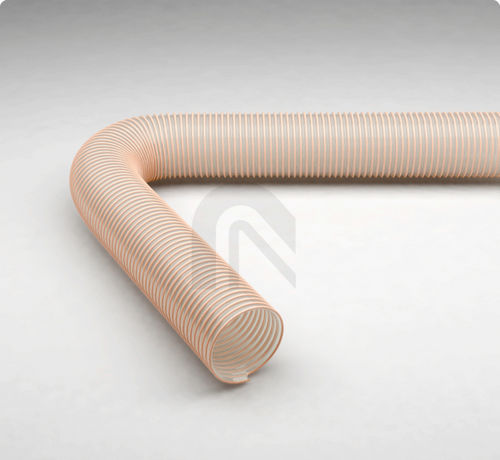

Bulk material hose Master-PUR HÜ-S Trivolution
for crude oilpolyesterpolyurethane

bulk material hose
bulk material hose
bulk material hose
Add to favorites
Compare this product


Characteristics

Use
for bulk materials, for crude oil
Material
polyester, polyurethane, PUR
Applications
suction, transport, construction, cleaning, chemistry, for food industry applications, for pharmaceutical applications
Norms
DIN
Other characteristics
oil-resistant, flexible, abrasion-resistant, chemical-resistant, smooth, gas-tight, UV-resistant, standard, reinforced, with smooth inner surface, small bend radius, anti-static, for abrasive products, transparent, flameproof, microbe-resistant, halogen-free
Inner diameter

100 mm, 125 mm, 150 mm
(3.937 in, 4.921 in, 5.906 in)

Outer diameter

113 mm, 138 mm, 163 mm
(4.449 in, 5.433 in, 6.417 in)

Pressure

1.45 bar, 1.6 bar, 2 bar
(21.03 psi, 23.206 psi, 29.008 psi)

Temperature

Min.: -40 °C
(-40 °F)

Max.: 90 °C
(194 °F)

Delivered length

10 m, 20 m, 25 m
(32'09" , 65'07" , 82'00" )

Description

PU Suction hose & Transport Hose, flexible, medium duty / reinforced, very smooth inner lining, antistatic, microbe-resistant, hardly inflammable acc. to DIN 4102 B1 Construction / Material Type of construction - Profile extruded hose with metal spiral Material of the spiral - Spring steel Execution of the wall - made of pure material, made of specified material, Addition of a non-migrating permanent antistatic agent, Wall thickness between the spirals approx. 2.0 mm Specifications of the wall - Surface resistance RO < 109 Ohm, measured according to DIN EN ISO 8031, Material is more abrasion resistant than comparable polyether polyurethane according to DIN ISO 4649, flame retardant according to DIN 4102 B1 Properties Specifications of the product - according to TRGS 727 and ATEX 2014/34 EU Chemical Properties - microbe-resistant, halogen-free, good resistance to chemicals, good UV resistance, good resistance to oil, good resistance to petrol, good ozone resistance, plasticiser-free Physical Properties - permanently antistatic Weight - heavy Pressure Resistance - moderately pressure resistant - Delivery Information Delivery, type of production - Various nominal widths in standard lengths are available ex-production, individual nominal widths and lengths also ex-stock
