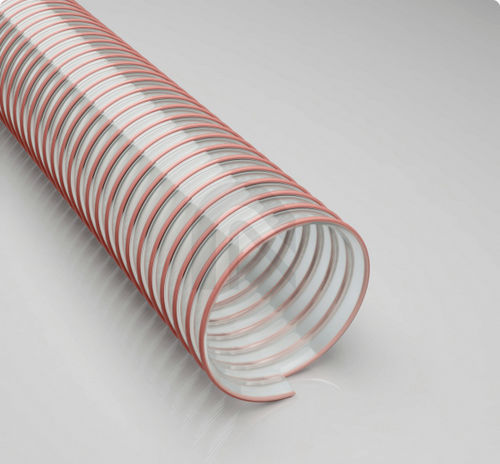

Transport hose Cargoflexfor bulk materialsfor abrasive productspolyester
Add to favorites
Compare this product
Characteristics
- Use
- for bulk materials, for abrasive products
- Material
- polyester, polyurethane
- Applications
- suction, transport, construction, chemistry, conveying, for food industry applications, for suction units, for pharmaceutical applications, for the plastics industry, for the steel industry
- Norms
- DIN
- Other characteristics
- vacuum, flexible, abrasion-resistant, chemical-resistant, oil-resistant, UV-resistant, spiral wire, standard, gas-tight, microbe-resistant, extruded, halogen-free, transparent
- Inner diameter
Max.: 254 mm
(10 in)Min.: 100 mm
(3.937 in)- Outer diameter
Max.: 275 mm
(10.827 in)Min.: 115 mm
(4.528 in)- Pressure
Max.: 3.15 bar
(45.687 psi)Min.: 1.35 bar
(19.58 psi)- Temperature
Max.: 90 °C
(194 °F)Min.: -40 °C
(-40 °F)- Delivered length
Max.: 20 m
(65'07" )Min.: 2.5 m
(8'02" )
Description
PU Suction hose & Transport hose, extremely abrasion and vacuum resistant
Construction / Material
Type of construction - Profile extruded hose with metal spiral
Spiral Design - made of steel wire
Execution of the wall - made of pure material, Wall thickness between the spirals approx. 3.2 - 4.8 mm, depending on DN
Specifications of the wall - Material is more abrasion resistant than comparable polyether polyurethane according to DIN ISO 4649
Properties
Chemical Properties - microbe-resistant, halogen-free, good UV resistance, good ozone resistance, plasticiser-free
Weight - heavy
Pressure Resistance - very pressure resistant
Other - high vacuum and good pressure resistance
-
Delivery Information
Delivery, type of production - Various nominal widths in standard lengths are available ex-production, individual nominal widths and lengths also ex-stock
Customizing Options
optional item modification (on request) - other lengths, other nominal widths, with customer-specific imprint
