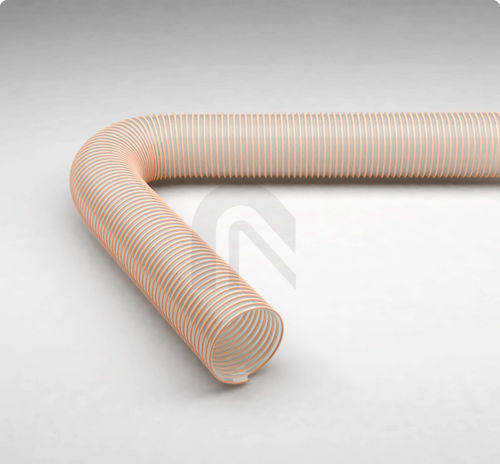

Transport hose Master-PUR HÜ Trivolution
for bulk materialsfor oilpolyester

transport hose
transport hose
transport hose
Add to favorites
Compare this product


Characteristics

Use
for bulk materials, for oil
Material
polyester, PU
Applications
suction, transport, construction, cleaning, chemistry, for food industry applications, for pharmaceutical applications
Norms
DIN
Other characteristics
oil-resistant, flexible, small bend radius, abrasion-resistant, reinforced, spiral wire, chemical-resistant, UV-resistant, flameproof, standard, with smooth inner surface, anti-static, microbe-resistant, ATEX, halogen-free, gas-tight
Inner diameter

Max.: 150 mm
(5.906 in)

Min.: 100 mm
(3.937 in)

Outer diameter

Max.: 162 mm
(6.378 in)

Min.: 111 mm
(4.37 in)

Pressure

Max.: 1.77 bar
(25.672 psi)

Min.: 1.26 bar
(18.275 psi)

Temperature

Max.: 90 °C
(194 °F)

Min.: -40 °C
(-40 °F)

Delivered length

Max.: 25 m
(82'00" )

Min.: 5 m
(16'04" )

Description

PU Suction hose & Transport Hose, flexible, medium duty / reinforced, very smooth inner lining, antistatic, microbe-resistant, hardly inflammable acc. to DIN 4102 B1 Construction / Material Type of construction - Profile extruded hose with metal spiral Material of the spiral - Spring steel Execution of the wall - made of pure material, made of specified material, Addition of a non-migrating permanent antistatic agent, Wall thickness between the spirals approx. 2.0 mm Specifications of the wall - Surface resistance RO < 109 Ohm, measured according to DIN EN ISO 8031, Material is more abrasion resistant than comparable polyether polyurethane according to DIN ISO 4649, flame retardant according to DIN 4102 B1 Properties Specifications of the product - according to TRGS 727 and ATEX 2014/34 EU Chemical Properties - microbe-resistant, halogen-free, good resistance to chemicals, good UV resistance, good resistance to oil, good resistance to petrol, good ozone resistance, plasticiser-free Physical Properties - permanently antistatic Weight - heavy Pressure Resistance - moderately pressure resistant Delivery Information Delivery, type of production - Various nominal widths in standard lengths are available ex-production, individual nominal widths and lengths also ex-stock Application Areas Areas of application - Bulk & Construction, Chemistry, Food & Pharma, Waste disposal & cleaning technology Customizing Options optional item modification (on request) - other lengths, other nominal widths, with customer-specific imprint
