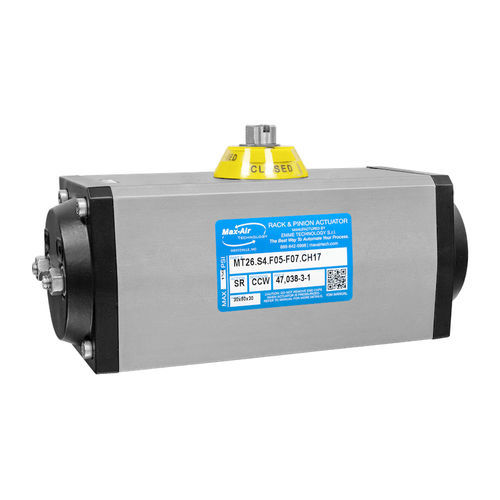

Pneumatic valve actuator MT series
quarter-turnrack-and-piniondouble-acting

pneumatic valve actuator
pneumatic valve actuator
pneumatic valve actuator
pneumatic valve actuator
Add to favorites
Compare this product


Characteristics

Type
pneumatic
Movement
quarter-turn
Technology
rack-and-pinion
Configuration
double-acting
Norms
ISO
Other characteristics
compact, NAMUR, low temperature
Torque

3 Nm, 5 Nm (2 ft.lb)

Pressure

Min.: 40 psi

Max.: 150 psi

Ambient temperature

Min.: -4 °F (-20 °C)

Max.: 176 °F (80 °C)

Rotation angle

90 °

Description

MT Series rack & pinion pneumatic actuators continue the Max-Air tradition of easy integration, flexible customization, and reliable operation. Features include two ISO bolt circle patterns drilled directly in the body, NAMUR standard mounting for accessories, and our patented ±10° adjustment for the open/closed positions, all backed by the best unlimited cycle life warranty.
