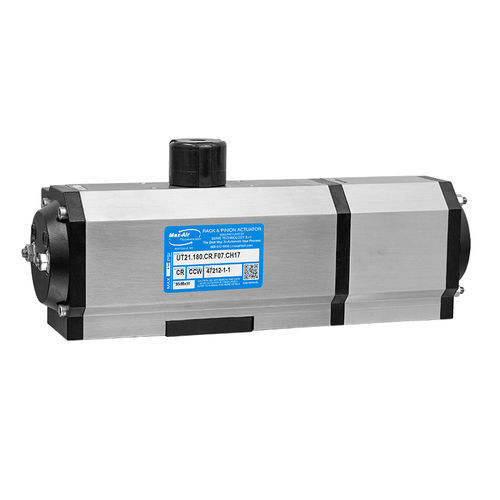

Pneumatic valve actuator UT180 series180°rack-and-piniondouble-acting
Add to favorites
Compare this product
Characteristics
- Type
- pneumatic
- Movement
- 180°
- Technology
- rack-and-pinion
- Configuration
- double-acting
- Norms
- ISO
- Other characteristics
- NAMUR
- Torque
0 Nm, 2 Nm
(0 ft.lb, 1.48 ft.lb)- Ambient temperature
Min.: -4 °F
(-20 °C)Max.: 176 °F
(80 °C)- Rotation angle
180 °
Description
UT 180° actuators offer an extended range of rotation beyond 90° quarter turn applications. Double acting actuators can be ordered in custom lengths between 120° and 180°, or extended travel stops can be used on the stock 180° actuator to adjust travel anywhere between 0° and 180°. Spring return actuators are available in a standard configuration (0°-180° travel, spring return to one end) or in “center return” configuration (0° ± 90° travel, spring return to the center). UT 180° actuators offer the same patented dual travel stop design (excluding 3 Position DA) w/ extended travel stop options and multiple mounting options for the ultimate flexibility.
Catalogs
Special Rotations 0° to 180°
24 Pages
