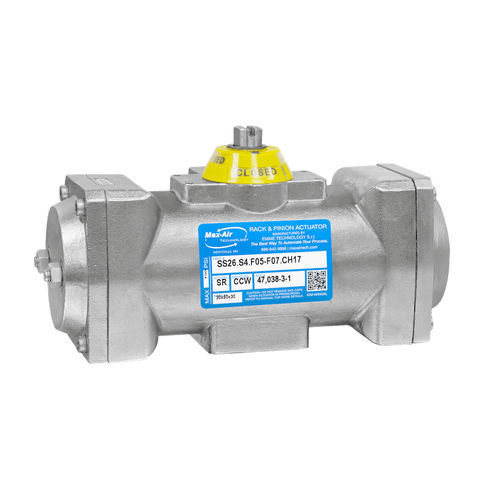

Pneumatic valve actuator SS seriesquarter-turnrack-and-piniondouble-acting
Add to favorites
Compare this product
Characteristics
- Type
- pneumatic
- Movement
- quarter-turn
- Technology
- rack-and-pinion
- Configuration
- double-acting
- Norms
- ISO
- Other characteristics
- NAMUR, low temperature
- Torque
3 Nm, 5 Nm
(2.21 ft.lb, 3.69 ft.lb)- Pressure
Min.: 40 psi
Max.: 150 psi
- Ambient temperature
Min.: -4 °F
(-20 °C)Max.: 176 °F
(80 °C)- Rotation angle
90 °
Description
SS Series actuators take corrosion resistance to the extreme with all of the great engineering features that separate Max-Air from the competition. Our stainless steel actuators conform to the ISO standard which makes valve automation easy and cost effective. Max-Air Technology’s dual patented travel stops allow up to 110° of stroke in a 90° actuator, providing exceptional positioning adjustment.
Catalogs
Engineered Polymer Actuators
16 Pages
