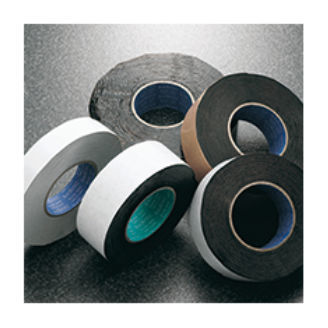

Vibration damping adhesive tape No.5978

paper linerrubberbutyl rubber

The No.5978 butyl tape for processing features optimized die-cutting performance and consistent adhesion for industrial bonding of rubber, foam and similar substrates.


Applications and features
Adhesive processing of rubber sheets, foam and various materials.
Good waterproofing and vibration-absorption properties.


Structure
Product cross-section illustrated on the product page (structure image available).


Functional details
Removable paper core — enables full use of the roll and reduces waste.
Environmentally sensitive adhesive — solvent-free; free from toluene and xylene.


Technical specifications
Thickness: 0.45 mm
Adhesion (N/10 mm): 1st surface 10.00; 2nd surface 10.00
Tack (Ball No.): 50
Holding power (Drop (min)): 400
Test method: In accordance with SLIONTEC method
Holding power measurement condition: 23C, 4.9 N


Common instructions for application
Clean the adherend surface of dirt, dust, oils, etc., before applying the tape.
Apply sufficient pressure after placement to ensure required adhesion.
Store in a cool, dark place; avoid direct sunlight and heaters.
Do not use for electrical insulation.
Do not apply directly to furniture, walls, glass, PVC products, or car bodies to avoid adhesive residue, staining or paint peeling.
Do not stick to skin unless the tape is intended for skin contact.
Select tape carefully to avoid adhesive residue or contamination of adherends.
Values are based on measurements but not guaranteed; specifications may change without notice. Use with caution; SLIONTEC disclaims liability for damages resulting from use.
