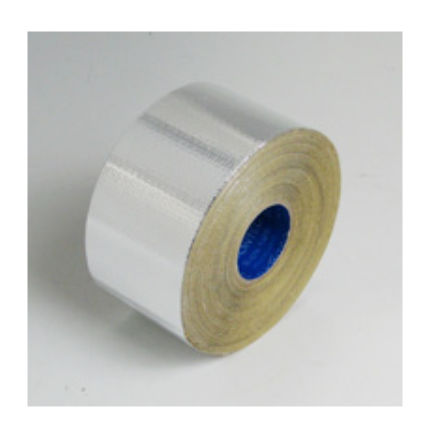

Sealing adhesive tape No.9810

aluminumfiberglass fabricpaper liner

The No.9810 Aluminum foil/Fiberglass tape is an aluminum foil/fiberglass adhesive tape offering strong tensile strength and moisture resistance, designed for sealing insulation materials and air-conditioning ducts. It features an environmentally sensitive, solvent-free adhesive and is suitable for use in low-temperature environments.

Applications and Features
For air conditioning duct sealing
For joint sealing of heat insulation material
Good adhesion under low temperatures

Structure
Layered construction (see structure diagram: Structure of No.9810)

Functions
Removable Paper Core — allows use of the tape to the end, reducing rejects
Environmentally Sensitive Product — uses an environmentally sensitive adhesive compound; solvent-free and free from toluene/xylene

Technical specifications
Brand: Maxell (SLIONTEC)
Model: No.9810
Adhesion: 4.70 N/10mm
Tack: Ball No. 20
Holding power: 300 min (Drop)
Application temperature range: -20–130C
Typical applications: air conditioning duct sealing, joint sealing of heat insulation materials
Adhesive: Environmentally sensitive, solvent-free (free from toluene/xylene)
Core: Removable paper core

Common instructions for application
Remove dirt, dust, oils, etc., from the adherend surface before applying the tape
Apply sufficient pressure to the tape after applying to obtain necessary adhesion
Store the tape in a cool, dark place; avoid heating agents such as direct sunlight and heaters
Do not use for electrical insulation purposes (out of application)
Do not apply tapes directly to furniture, walls, glass, PVC products, car bodies, etc.; adhesive residues, discoloration or peeling of paint may arise
Do not stick tapes directly to skin unless the tape is specifically designed for that application
Confirm selection carefully to avoid adhesive residue and/or contamination to adherends that may arise from application
Measured values are provided by measurement but are not guaranteed; product specifications may change without prior notice
Use with care; SLIONTEC does not hold liabilities for damages resulting from use of the tape
