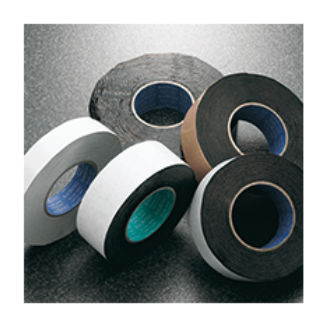

Vibration damping adhesive tape No.5976

paper linerrubberbutyl rubber

The No.5976 Butyl tape for processing is a pressure-sensitive butyl adhesive tape developed for die-cutting and adhesive processing of rubber sheets, foam and similar materials. It is formulated to improve die-cutting performance and increase processing efficiency.




Applications and features
Designed for adhesive processing and die-cutting of rubber sheets, foam and comparable substrates.
Provides waterproofing and vibration-absorbing properties suitable for industrial assemblies.
Thickness: 0.6 mm.




Structure
Multi-layer tape structure (refer to product structure image for layer details).




General properties
Adhesion: 10.00 N/10mm (1st surface); 10.00 N/10mm (2nd surface).
Tack: Ball No. 50.
Holding power: 400 min (test conditions below).
Test method: In accordance with SLIONTEC method. Holding power measured at 23C with 4.9 N.




Functions
Removable paper core — Use the tape to the end; reduces material waste.
Environmentally sensitive product — Uses solvent-free adhesive formulation; free from toluene and xylene.




Technical specifications
Product name: Butyl tape for processing (No.5976).
Brand / Series: Maxell / SLIONTEC (Adhesive Tapes).
Adhesive type: Butyl (pressure-sensitive adhesive).
Thickness: 0.6 mm.
Adhesion: 10.00 N/10mm (both 1st and 2nd surfaces).
Tack: Ball No. 50.
Holding power: 400 min (holding power test: 23C, 4.9 N).
Test method: In accordance with SLIONTEC method.
Primary applications: Die-cutting and adhesive processing of rubber sheets, foam and similar materials.
Environmental note: Solvent-free adhesive; free from toluene and xylene.

Common instructions for application
Remove dirt, dust, oil and other contaminants from the adherend surface before applying the tape.
Apply sufficient pressure after placement to ensure required adhesion.
Store in a cool, dark place away from direct sunlight and heat sources.
Do not use for electrical insulation purposes.
Do not apply directly to furniture, walls, glass, PVC products, or vehicle bodies; adhesive residue, discoloration or paint peeling may occur.
Do not adhere to skin unless the tape is specified for skin contact; otherwise irritation or adhesive residue may occur.
Confirm tape selection carefully to avoid adhesive residue or contamination of the adherend.
