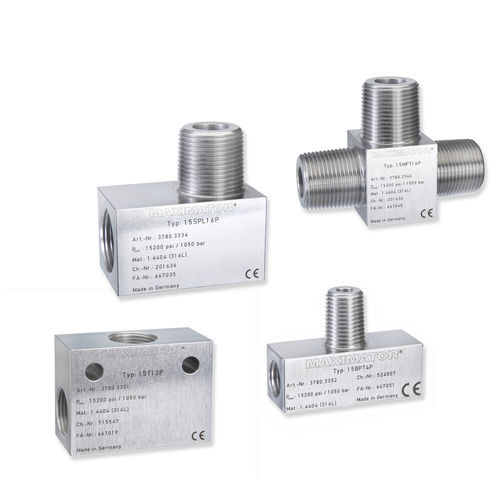

Pneumatic fitting 15L series
screw-incrossT

pneumatic fitting
pneumatic fitting
Add to favorites
Compare this product


Characteristics

Applications
pneumatic
Attachment
screw-in
Configuration
cross, T, elbow
Material
stainless steel
Other characteristics
bulkhead, high-pressure
Diameter

Min.: 0.25 in

Max.: 1 in

Operating pressure

Min.: 0 bar
(0 psi)

Max.: 1,050 bar
(15,228.96 psi)

Description

Maximator Pipe Fittings are designed for liquid and gas applications. The P Series Fittings are available from 1/4” to 1”NPT to 15,200 psi (1,050 bar). NPT threads must be sealed using a high quality PTFE tape and/or paste product. Sealing performance may vary based on many factors such as pressure, temperature, media, thread quality, thread material, proper thread engagement and proper use of thread sealant. MAXIMATOR recommends to limit the number of times an NPT fitting is assembled and disassembled because thread deformation during assembly will result in deteriorating seal quality over time
