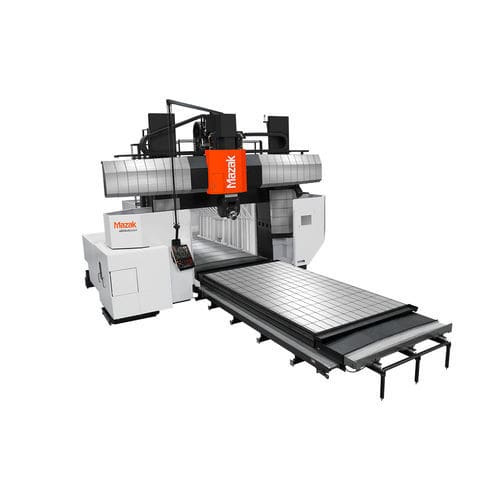

5-axis CNC machining center VERSATECHverticaldouble-columnBT 50
Add to favorites
Compare this product
Characteristics
- Number of axes
- 5-axis
- Spindle orientation
- vertical
- Structure
- double-column
- Spindle mount
- BT 50, CAT50
- Number of tool stations
- 30 tools
- Applications
- for large workpieces
- Other characteristics
- high-productivity
- X travel
4,000 mm, 5,000 mm, 9,000 mm
(157.48 in, 196.85 in, 354.33 in)- Y travel
3,600 mm, 4,600 mm
(141.73 in, 181.1 in)- Z travel
710 mm
(27.95 in)- Rotational speed
8,000 rpm
(50,265 rad.min-1)- Power
30 kW, 40 kW
(40.79 hp, 54.38 hp)- Work feed X-axis
15,000 mm/min, 30,000 mm/min
(9.84 in/s, 19.69 in/s)- Work feed Y-axis
30,000 mm/min
(19.69 in/s)- Work feed Z-axis
30,000 mm/min
(19.69 in/s)- Table load capacity
43,000 kg
(94,799 lb)- Tool weight (max)
25 kg
(55.1 lb)- Weight
Min.: 59,700 kg
(131,615.97 lb)Max.: 113,100 kg
(249,342.82 lb)- Overall length
10,525 mm, 13,025 mm, 16,525 mm, 21,030 mm, 25,030 mm
(414.4 in, 512.8 in, 650.6 in, 828 in, 985.4 in)- Overall width
7,506 mm, 7,916 mm, 8,440 mm
(295.5 in, 311.7 in, 332.3 in)- Overall height
6,650 mm
(261.8 in)
Description
Continuous machining without head change thanks to spindle head with B- and C-axes.
The VERSATECH Series of multiple-surface 5-axis double column machining centers are designed to provide unsurpassed productivity in the machining of very large work pieces thanks to a spindle head that can positioned in the vertical and horizontal positions and any angle in between.
VIDEO
Catalogs
No catalogs are available for this product.
See all of Mazak‘s catalogsOther Mazak products
5-axis Machining Centres
