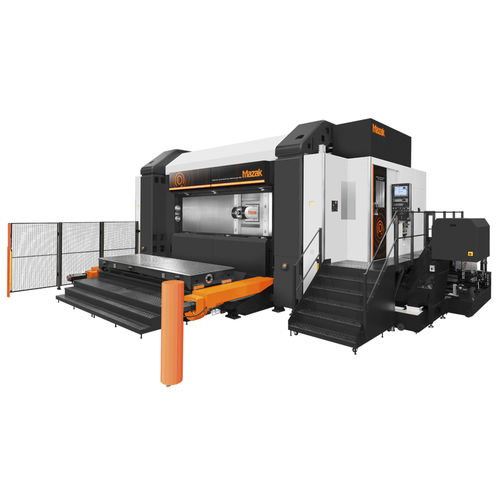

5-axis CNC machining center VORTEX PROFILER

horizontalcolumn typeHSK A-63

90° table tilt system for easy setup and changeover Applications With a 4000 mm × 1250 mm wide table that has a maximum loading weight of 3000 kg, this machine is ideal for machining applications for aircrafts, especially the structural components of wing systems such as wing ribs. Machine construction ensures stable machining accuracy in the X-axis direction from the bottom to top of the machine table The large table capacity allows the machining of large right- and left-hand components in the same machine setup. Box construction integrating the base, column and table Fully closed force loop construction and integrated robust table provides exceptional rigidity to ensure stable high-machining accuracy. Tilting table for large workpieces For convenient workpiece loading / unloading, the table is horizontal for workpiece setup and tilted 90 degrees for machining. Thermally symmetrical spindle / column The thermally symmetrical spindle / column holds the headstock on both the right and left sides to maintain consistent high-machining accuracy (compared to an unstable cantilever construction). High-accuracy table positioning The repeatability accuracy of the tilting table is within 13 μm (X / Y / Z directions).
