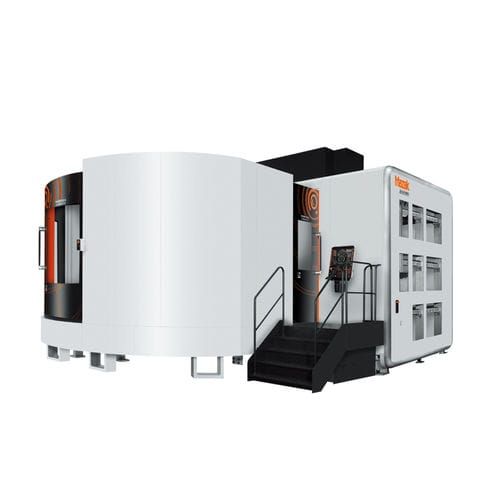

5-axis CNC machining center VORTEX e-V

verticaldouble-columnBT 50

High-accuracy machining with double column structure A direct drive motor for table swivel axis (C-axis) is equipped for high-speed cutting feed during 5-axis machining Automation systems for diverse workpieces and production volumes Wide range milling with double column structure Double column construction suitable for top face machining of large workpieces By utilising a double column structure together with long axes strokes, top face milling can be performed with only linear X- and Y-axis positioning, resulting in stable machining accuracy and higher productivity. The table uses a direct drive motor for high-speed C-axis feed. Since a direct drive motor directly delivers power to C-axis with less power loss, high-speed feed is ensured with 5-axis control for enhanced productivity. Automation systems for diverse workpieces and production volumes PALLETECH HIGH RISE SYSTEM (2 levels) PALLETECH MANUFACTURING CELL (1 level) Flexible system expansion is possible in response to changes of production volume Different types of Mazak machines can be integrated into the system Flexible linkage with peripheral equipment and systems that increase the rate of automation of long-time automatic operations and machining processes
