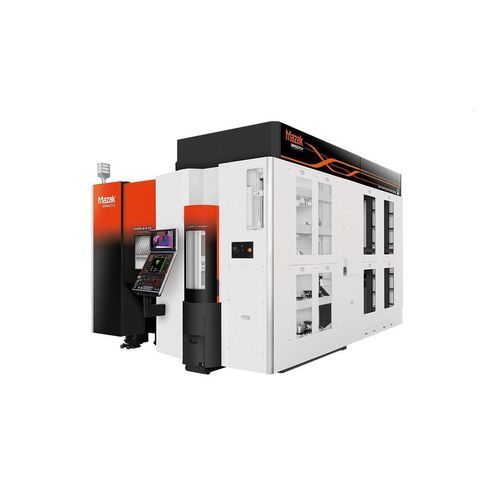

5-axis CNC machining center VARIAXIS i-300 AWC

verticalBT 40CAT40

Compact simultaneous 5-axis vertical machining centre with Auto Work ChangerCompact workpiece stocker and tool magazine enable continuous machiningStandard Smooth AWC software for Auto Work Changer management and operationHigh-speed and high-precision machining of complex componentsAutomatic Work Changer (AWC)Materials stored in the work stocker are carried into the machine, and after machining is complete, they are removed and stored in the work stocker. According to the set schedule, materials are loaded and unloaded in sequence for continuous machining.1: Loading station2: Work stocker3: Table4: Loader vertical movement5: Loader horizontal movement6: Loader rotationSelectable work stockerAfter the initial installation, the work stocker can be expanded from 32 to 40 work stockers, depending on the production requirement.Transportable workpiece specificationsMax. workpiece size1: Diameter: Φ350 mm2: Height: 315 mmThe maximum weight is 65 kg including the work holder.Smooth AWCSmooth AWC is the software for setup, management and automatic operation of the VARIAXIS i-300 AWC, incorporated in the CNC system, MAZATROL SmoothAi.19” touch panel for intuitive operationThe system monitoring screen displays the status of the entire AWC systemEasy operation even when machining different workpieces with the same fixture on the work holderSetup instructions are displayed during automatic operationOperators are able to switch between the CNC screens on this machine to operate it.1: Schedule2: Missing and unnecessary tools list3
