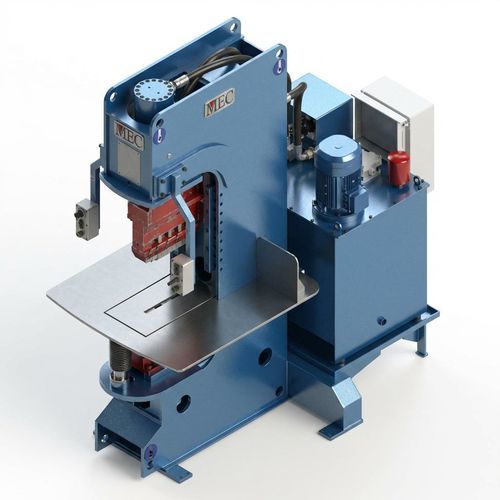

Stone splitting machine C Series

Overview
The MEC C Series manual stone splitters are designed for high-speed manual processing and handling of natural and engineered stone. The open swan‑neck C‑frame gives the operator direct access to the workpiece, simplifying multiple manipulations and accelerating production of cubes, curbs, pavers and wallstone.

Features

• Mechanically adjustable teeth adapt to surface contours to ensure even distribution of splitting force and clean breaks.
• Mobile, adjustable work table drops from under the stone to produce precise, inline splits.
• Adjustable head travel reduces cycle time, particularly effective in high‑volume runs with consistent raw stone sizes.
• C‑frame design fully configurable in size and power to match production requirements.
• Compatible with other MEC machines and handling equipment to form standalone processing cells or multi‑machine lines.

Applications

• Production of cubes, edging, curbs and wall stones.
• Manual manufacture of pavers, curbstones and a wide range of split stone products.

Technical specifications

• Length of splitting blade: 240 mm – 700 mm
• Splitting heights: 200 mm – 550 mm
• Splitting powers: 24 – 160 tons
