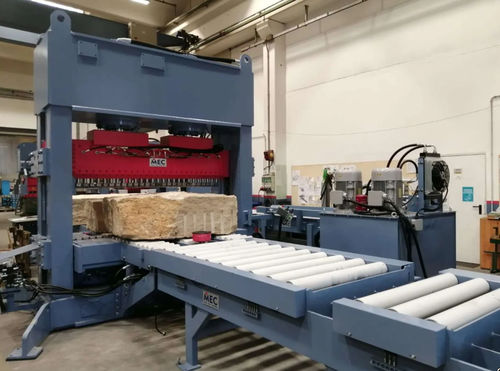

Stone stone splitting machine SERIE H

Overview The TESMO machines are closed H-frame manual stone-splitting machines with a wide opening reaching up to 4.0 m. They are designed for precise splitting of long stone elements and heavy workpieces. The line is available with standard mechanical blade adjustment or an innovative hydraulic adjustable system that maintains constant splitting power on each tooth, improving finished-product quality and reducing waste.

Key statement High splitting precision and reproducible quality with minimal operator effort.

Main benefits

• Consistent splitting performance on long materials thanks to hydraulically adapted blades.
• Improved finished-product quality and reduced scrap.
• Enhanced precision on pre-treated or specific materials when equipped with rotatable-based pivots.
• Flexible integration with powered or idle infeed/outfeed roller conveyors (rubber-coated option available).

Configurations and options

• Blade adjustment: mechanical adjustment or hydraulic adjustable system (constant power per tooth).
• Optional rotatable-based pivots for improved splitting accuracy.
• Infeed/outfeed roller conveyors: powered or idle; optional rubber coating for handling delicate or finished surfaces.
• Customizable opening width up to 4.0 m to accommodate long elements.

Usage TESMO machines are intended for manual stone-splitting operations in quarries and stone-processing plants, particularly for long slabs, beams and other elongated elements requiring high-quality splits.

Technical specifications

• Denomination / series: TESMO.
• Machine type: closed H-frame (portal) stone-splitting machine.
• Maximum opening width: up to 4.0 m (depending on configuration).
• Blade adjustment: mechanical or hydraulic adjustable system.
• Hydraulic system feature: constant splitting power per tooth (when fitted).
• Optional accessories: rotatable-based pivots; infeed/outfeed roller conveyors (powered or idle); rubber-coated rollers.
• Main application: manual splitting of long stone materials for high-quality finishes and waste reduction.
