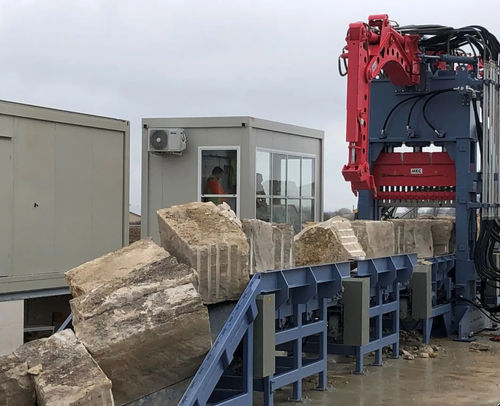

Ceramic stone splitting machine PX

for marble slab

Product overview A closed-frame stone splitter designed to split all types of natural stone. Mechanical blade/teeth adjustment and a mobile working table allow the PX Series to be used either as primary splitters to feed splitting lines or as independent production machines. Suitable for installation directly in quarries to process sawn blocks, natural quarry layers or irregular stones.

Operation and features The lower blade is fixed while the working table drops at the moment of splitting to create a clean split between blades. Mechanical adjustment of blades/teeth provides precise setting for different materials. Machines can be supplied with manipulators to facilitate handling and with operator cabins as control stations.

Applications

• Primary splitter for feeding splitting lines
• Independent production equipment for finished stone products
• On-site quarry processing of sawn blocks
• Processing of natural quarry layers and irregular stones

Options and accessories

• Manipulators for handling and positioning
• Operator cabins configured as control stations

Technical specifications

• Frame: closed, robust construction
• Blade/teeth adjustment: mechanical
• Blade arrangement: lower blade fixed
• Working table: mobile, drops during splitting for clean splits
• Configurations: primary splitter or independent machine
• Optional equipment: manipulators, control cabins
• Installation: suitable for on-site quarry installation
