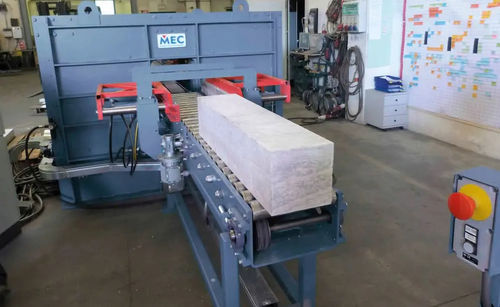

Stone stone splitting machine Half

Overview
The HALF is a horizontal stone splitter equipped with two horizontal blades that perform automatic splitting. Designed to recover thin waste strips from sawing operations, the machine is available in built-to-order versions with extended blades and adapted handling systems for horizontal splitting of longer pieces (strips or platters). It is particularly suited to multilayer and veined materials such as gneiss and granite. Splitting with the HALF yields two pieces: each has one natural split face and one smooth/sawn face suitable for cladding.

Main features

• Two horizontal blades for simultaneous automatic splitting
• Automatic operation for high repeatability in series processing
• Built-to-order customizations: extended blades and adapted handling systems
• Optimized for multilayer and veined stones (gneiss, serizzo, granite)
• Produces two outputs per split: one natural split face and one sawn/smooth face

Key dimensional data
Maximum material width: 300 mm
Maximum material height: 200 mm
Blade length: 400 mm

Applications

• Recovery of thin waste strips from sawn material
• Horizontal splitting of long elements, strips or platters (with customized handling)
• Production of cladding elements and natural-faced stone products

Technical specifications

• Machine type: horizontal stone splitter
• Blade configuration: 2 horizontal blades (automatic)
• Suitable materials: veined and multilayer stones (gneiss, serizzo, granite)
• Output per operation: two pieces (one split face + one sawn face)
• Customization options: extended blades and adapted handling systems available on request
