Stone stone splitting machine Trittico
Add to favorites
Compare this product
Characteristics
- Material
- stone
Description
Overview

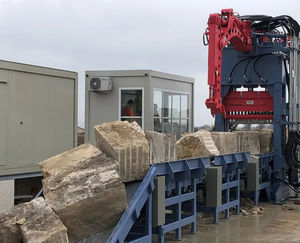

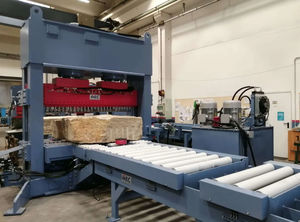

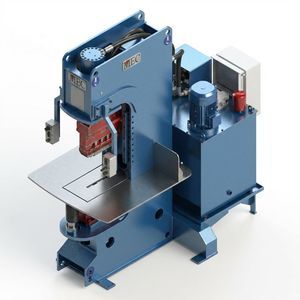

These manual stone splitters of the Trittico series are designed for splitting irregular, medium and large stone blocks. Integrated entry (and optionally exit) conveyors deliver heavy material under the splitting blade, reducing operator lifting and allowing the machine to function as a standalone unit or be integrated into a processing line.
Operation

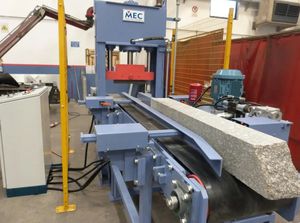

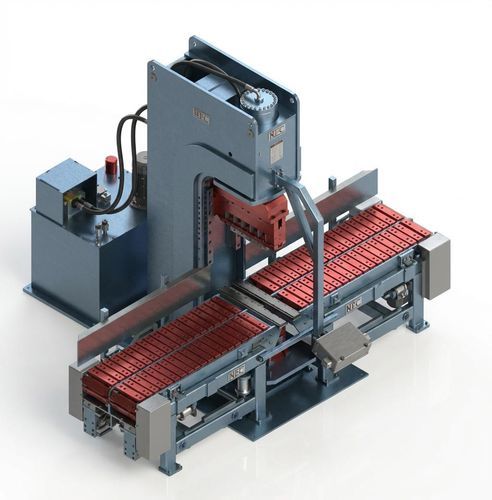

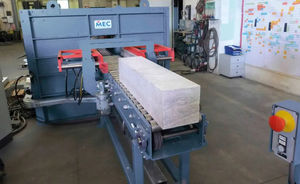

The entry working table is replaced by an integrated conveyor that feeds the material directly to the blade. Typical conveyors use a double row of side-by-side steel slats; by independently controlling both rows the stone can be positioned and rotated up to 360°, enabling precise alignment with the splitting line.
Configurations and options

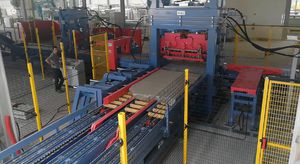

Optional handling equipment includes manipulators with articulated arms, grippers or clamps to facilitate loading and positioning. A radio remote control is available for operator convenience. The series can operate as an independent production unit or as the primary splitting machine in a complete line.
Performance and finish
Blades in the Trittico series feature extended tooth adjustment to improve finished surface quality and minimize waste. The same piece can be split multiple times without returning it to the line start. Adjustable blade return time helps optimize throughput and reduce idle time.
Technical specifications
These manual stone splitters of the Trittico series are designed for splitting irregular, medium and large stone blocks. Integrated entry (and optionally exit) conveyors deliver heavy material under the splitting blade, reducing operator lifting and allowing the machine to function as a standalone unit or be integrated into a processing line.
Operation
The entry working table is replaced by an integrated conveyor that feeds the material directly to the blade. Typical conveyors use a double row of side-by-side steel slats; by independently controlling both rows the stone can be positioned and rotated up to 360°, enabling precise alignment with the splitting line.
Configurations and options
Optional handling equipment includes manipulators with articulated arms, grippers or clamps to facilitate loading and positioning. A radio remote control is available for operator convenience. The series can operate as an independent production unit or as the primary splitting machine in a complete line.
Performance and finish
Blades in the Trittico series feature extended tooth adjustment to improve finished surface quality and minimize waste. The same piece can be split multiple times without returning it to the line start. Adjustable blade return time helps optimize throughput and reduce idle time.
Technical specifications
- Type: Manual stone splitter
- Best suited for: irregular, medium and large stone dimensions
- Conveyor: integrated entry conveyor; optional exit conveyor
- Conveyor configuration: double row of side-by-side steel slats (typical)
- Feeding control: independent control of both conveyor rows enabling 360° rotation
- Handling options: manipulators with arms, grippers or clamps (optional)
- Control options: radio remote control (optional)
- Application modes: standalone unit or primary splitting machine in a processing line
- Blades: extended tooth adjustment for improved finish and reduced waste
- Operator effort: reduces/eliminates manual lifting of heavy stones
