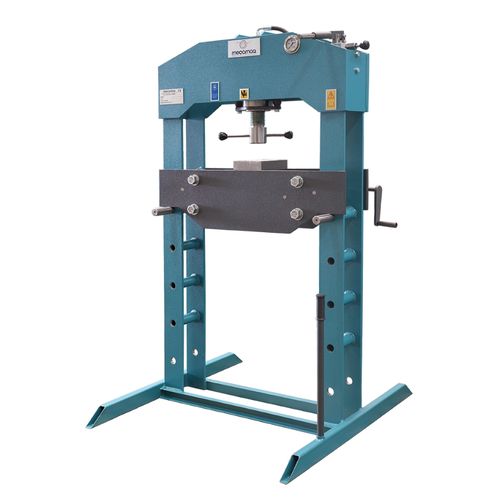

Manual press MC-50 assembly4-columnscrew
Add to favorites
Compare this product
Characteristics
- Operation
- manual
- Function
- assembly
- Structure
- 4-column, screw
- Other characteristics
- vertical, shop, hybrid
- Force
50 tf
- Opening
Max.: 1,000 mm
(39 in)Min.: 136 mm
(5 in)- Stroke
150 mm
(5.906 in)- Weight
360 kg
(794 lb)- Overall length
1,000 mm
(39 in)- Overall width
1,130 mm
(44 in)- Overall height
1,950 mm
(77 in)
Description
Single-acting cylinder manual presses
Activated by means of a manual pump.
Single-acting cylinder with spring recoil and approximation spindle screw. Solid structure in a monoblock format to ensure greater rigidity of the machine as a whole.
Movable bedplate adjustable to different heights by means of an anti-fall worm reducer, with transmission by means of stranded steel cable.
Machines are supplied with support dollies for the bedplate, glycerine manometer and user's manual. All of our machines are supplied in compliance with the CE guidelines on machinery 2006/42/CE. Risk evaluation and safety measures / Hybrid method application.
Man. Pump no. speeds - 1
