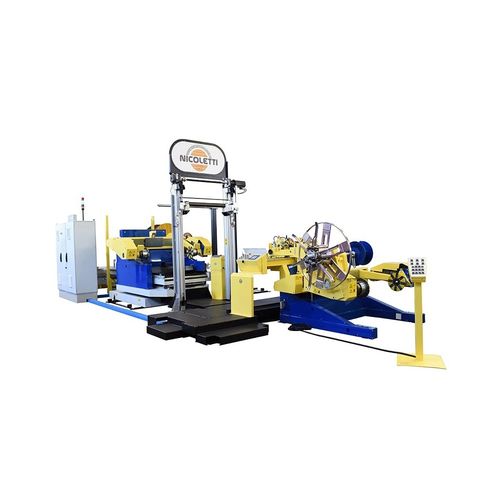

Unwinding/rewinding line AUTOMAT300-16/30-MP

MEDIUM PERFORMANCE - approx. 120 operations a day on average AUTOMATIC PAYOFF (Reference position [1] on technical data sheet): drum diameter range Ø600mm to Ø1600mm, drum width range 310mm to 1150mm, winding motor power 11kW AUTOMATIC TAKE-UP (Reference position [2] on technical data sheet): drum diameter range Ø600mm to Ø1600mm, drum width range 310mm to 1150mm, winding motor power 11kW Automatic layering with LASER alignment sensors (Reference position [12] on technical data sheet) Automatic cable diameter measuring (Reference position [3] on technical data sheet) Measuring device with horizontal and vertical cable guide rollers automatic opening and closing, for cable min. Ø4mm max. Ø60mm, tolerance ±0.5% (Reference position [3] on technical data sheet) Automatic drum data settings Automatic tensioning adjustment based on cable diameter with hydraulic tensioning brake ON PAYOFF, tension sensitivity min. 15kg, max. 100kg (Reference position [5B] on technical data sheet) Automatic coiling station, with collapsible coiling head with automatic opening of retaining spokes Ø1000mm width 90 to 200mm internal core 320mm fixed (option of 520mm fixed), pedal-operated automatic cable attachment, 3 x strapping at 120° to be performed by hand (Reference position [6A] on technical data sheet) Winding head for spools min. Ø100mm max. Ø500mm (Reference position X on technical data sheet) (Reference position [4] on technical data sheet) Automatic roller conveyors with three loading stages (Reference position [7] on technical data sheet) Automatic drum bore height detection laser barrier (Reference position [13] on technical data sheet)
