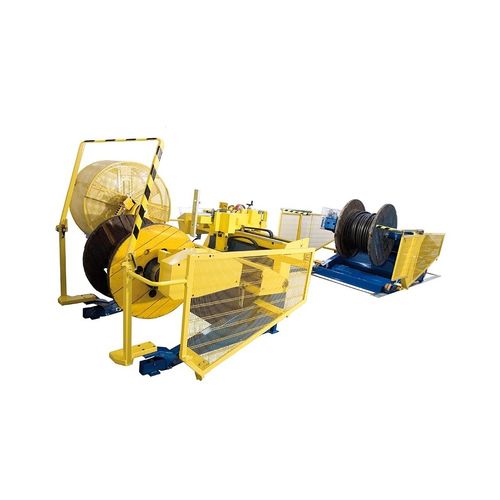

Cable drum rewinder-winder LINAP-60/26-AP

automaticmotorizedmobile

HIGH PERFORMANCE - More than 20 operations a day on average Mobile rail-mounted payoff with automatic rack-operated travel. Software for automatic processing cycle function interfacing between take-up and payoff Automatic tensioning with hydraulic brake based on cable diameter Automatic drum bore detection and automatic drum gripping Standard speed: 0-130 rpm Maximum torque 1380Nm Weight capacity 6000 kg Supply voltage 380 V (to be confirmed at order stage) Overall dimensions: Length 13600 mm Width 4600 mm Perimeter guarding to CE standards comprising fixed barriers and safety light curtains Rope for cable attachment and drawing on take-up. Approximate performance +50% compared to separate take-up and payoff The system is capable of performing the winding cycle automatically unattended. CD-40/BM2/SE1/BI SHAFTLESS drum payoff with INDEPENDENT ARMS - weight capacity 6000 kg - max. Ø 2600mm min. Ø 600mm – Width max. 1480mm Independent arms with separate opening and closing operation, for easier gripping of drums that are not centred with the payoff. Motor-driven arms Automatic grippers complete with drive bar (only use the drive bar in the event the grippers slip on the drum). Electro-hydraulic lifting Wheel-mounted payoff runs automatically on rails with rack-operated travel Electro-hydraulic front parking jacks. Unwinding to attach cable on take-up and retrieve length of cable when the operation is done. Remote control for controlling cable attachment and retrieval. Hydraulic tensioning system, with software for controlling tension automatically based on cable diameter.
