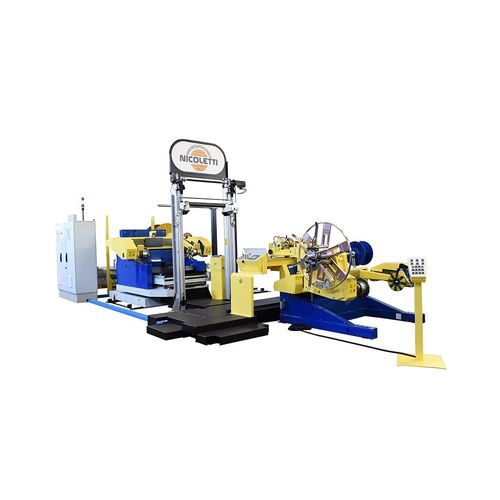

HIGH PERFORMANCE - Over 50 operations a day on average
AUTOMATIC PAYOFF (Reference position [1] on technical data sheet): drum diameter range Ø800mm to Ø2600mm, drum width range 400mm to 1480mm, winding motor power 22kW
AUTOMATIC TAKE-UP (Reference position [2] on technical data sheet): drum diameter range Ø800mm to Ø2600mm, drum width range 400mm to 1480mm, winding motor power 22kW
Automatic layering with LASER alignment sensors (Reference position [12] on technical data sheet)
Automatic cable diameter measuring (Reference position [3] on technical data sheet)
Measuring device with horizontal and vertical cable guide rollers automatic opening and closing, for cable min. Ø5mm max. Ø100mm, tolerance ±0.5% for cable min. Ø10mm max. Ø80mm (Reference position [3] on technical data sheet)
Automatic drum data settings
Automatic electronic tensioning by means of vertical dancer and take-up/payoff motors, pulling tension sensitivity from min. 3kg to max. 100kg based on cable diameter (Reference position [5B] on technical data sheet)
Automatic coiling station, with collapsible coiling head with automatic opening of retaining spokes Ø1000mm width 90 to 200mm internal core 320mm fixed (option of 520mm fixed), pedal-operated cable attachment, 3 x automatic strapping at 120° (Reference position [6A] on technical data sheet)
AUTOMATIC strapping head (Reference position [6A] on technical data sheet)
Winding head for spools min. Ø100mm max. Ø500mm (Reference position [4] on technical data sheet)
