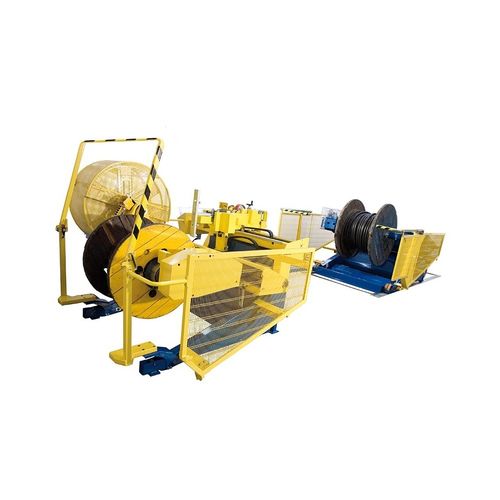

Cable drum rewinder-winder LINAP-60/26-MP

semi-automaticmotorizedmobile

MEDIUM PERFORMANCE - 10-20 operations a day on average Mobile rail-mounted payoff Software for automatic processing cycle function interfacing between take-up and payoff Automatic tensioning with hydraulic brake Standard speed: 0-80 rpm Maximum torque 1506Nm Weight capacity 6000 kg Supply voltage 380 V (to be confirmed at order stage) Overall dimensions: Length 13600 mm Width 4600 mm Perimeter guarding to CE standards comprising fixed barriers and safety light curtains Rope for cable attachment and drawing on take-up. Approximate performance +30% compared to separate take-up and payoff The system is capable of performing the winding cycle automatically unattended. CD-40/BM2/SE1/BI SHAFTLESS drum payoff with INDEPENDENT ARMS - weight capacity 6000 kg - max. Ø 2600mm min. Ø 600mm – Width max. 1460mm Independent arms with separate opening and closing operation, for easier gripping of drums that are not centred with the payoff. Motor-driven arms Electro-hydraulic lifting Payoff runs on rails fastened to the floor. Pendant pushbutton station for controlling unit travel on wheels along rail Gearmotor-driven wheel Electro-hydraulic front parking jacks. Gearmotor unit for unwinding to attach cable on take-up and retrieve length of cable once the operation is done. Pendant pushbutton station for controlling cable attachment and retrieval. Hydraulic tensioning system, with software for controlling tension automatically based on cable diameter. Drum positioning cradle
