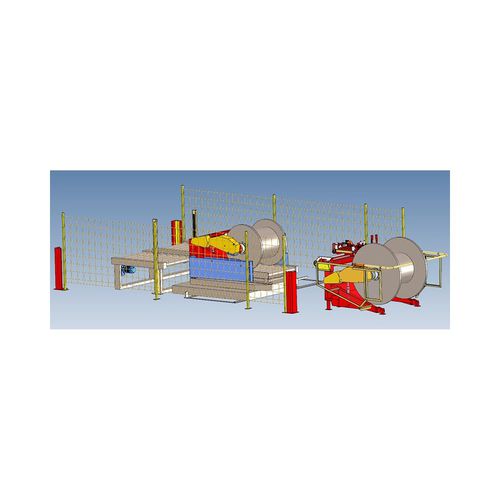

Unwinding/rewinding line AUTOMAT200-26/60-B1-P-1S

Up to 20 operations a day on average AUTOMATIC PAYOFF (Reference position [1] on technical data sheet): drum diameter range Ø800mm to Ø2600mm, drum width range 400mm to 1480mm, pulling with adjustable automatic hydraulic tensioning min. 15kg, max. 100kg AUTOMATIC TAKE-UP (Reference position [2] on technical data sheet): drum diameter range Ø800mm to Ø2600mm, drum width range 400mm to 1480mm, winding motor power 11kW Automatic layering with perpendicularity alignment sensors (Reference position [12] on technical data sheet) Automatic cable diameter measuring (Reference position [3] on technical data sheet) Accuarated measuring device with horizontal and vertical cable guide rollers manual opening and closing, for cable min. Ø5mm max. Ø100mm, tolerance ±0.5% on range 10-80mm(Reference position [3] on technical data sheet) Automatic drum data settings Automatic tensioning adjustment based on cable diameter with hydraulic tensioning brake ON PAYOFF, tension sensitivity min. 15kg, max. 100kg (Reference position [5B] on technical data sheet) Coiling head built into arm, with manual cable attachment, collapsible coiling head with manual opening of coil-retaining spokes, Ø1000mm width 90 to 200mm internal core 320mm fixed (option of 520mm fixed) (Reference position [6B] on technical data sheet) Winding head for spools min. Ø100mm max. Ø500mm (Reference position [4] on technical data sheet) Automatic one-reel-place roller conveyors, turning suitable for front and side loading/unloading onto/out two steel pallets (Reference position [7] on technical data sheet)
