Flow data-logger SmartEAR®+ ePF

pressureNB-IoTLTE-M

Product overview

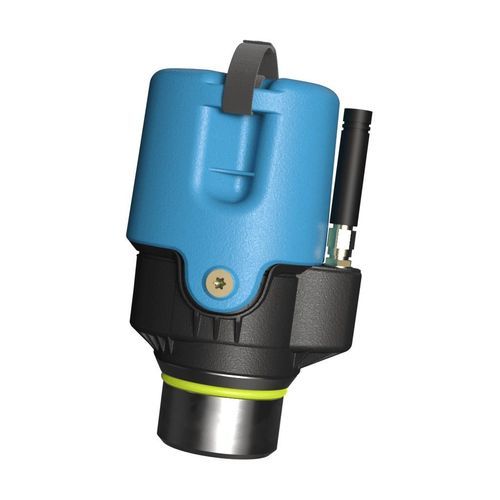

The SmartEAR®+ ePF (SebaKMT®) is a retrofit-capable data logger for zone monitoring and leak detection in drinking water networks. Integrated with the POSEYEDON® Cloud, it provides continuous, location-independent collection and secure transfer of pressure and flow data to support operational decisions and reduce water losses.

Primary uses

• Zone monitoring and early leak detection in potable water distribution networks.
• Pressure monitoring on pressure reducing valves (PRVs): inlet and outlet pressure measurement to detect fluctuations and assess PRV performance.
• Retrofitting of mechanical water meters: convert existing mechanical meters into networked IoT measurement points.
• Long-term monitoring and network optimization through continuous analysis of pressure and flow trends.

Key benefits

• Secure, encrypted data transfer to the POSEYEDON® Cloud for protected analysis.
• Support for timely operational response via continuous parameter monitoring and automated alerts.
• Simple retrofit installation; commissioning supported by the SmartEAR‑Go! app.
• Energy-efficient operation with extended battery life suitable for long-term field deployment.
• Support for up to 2 pressure sensors and up to 2 water meters on a single logger; standard 0–10 V sensor input.

Special features

• Waterproof housing designed for outdoor/field installation.
• Modern IoT communication: NB‑IoT and LTE‑M for reliable wireless data transmission.
• Real-time data analysis and automatic alerting for proactive problem handling.
• 3D product view and downloadable technical documentation for planning and installation.

Installation & operation

• Quick retrofit to existing mechanical meters and pressure sensors without major system modifications.
• Commissioning and configuration via the SmartEAR‑Go! app for efficient setup.
• No additional external hardware required for cloud connection when installed and configured correctly.

Cloud & data handling

• Collected measurements are transmitted wirelessly and stored securely in the POSEYEDON® Cloud.
• Cloud features: centralized visualization, historical comparison, automated alerts and scalable monitoring for network operators.

Technical specifications

• Brand: SebaKMT®
• Model: SmartEAR®+ ePF
• Functions: pressure and flow logging for zone monitoring and leak detection
• Connectivity: NB‑IoT and LTE‑M (encrypted transmission)
• Sensors supported: up to 2 pressure sensors and up to 2 water meters
• Sensor interface: standard 0–10 V input for pressure sensors
• Design: waterproof housing for outdoor use
• Power: low‑power operation with long battery life
• Installation: retrofit-capable; SmartEAR‑Go! app support for commissioning
