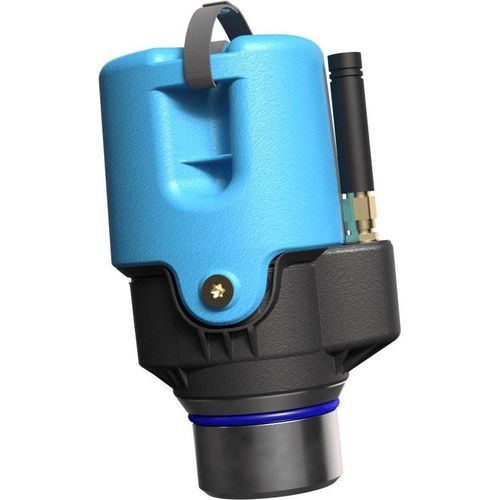

Pressure data-logger SmartEAR®+ eC

temperaturenoiseBluetooth

Overview
The SmartEAR®+ eC is a compact IoT logger for continuous monitoring of water distribution networks. It simultaneously measures acoustic signals, pressure and temperature to enable early and precise leak detection in main lines and plastic pipes. Secure transmission to the POSEYEDON® Cloud supports centralized analysis and long-term network optimization.

Key functions and benefits

• Simultaneous acoustic, pressure and temperature measurement for accurate leak localization
• Continuous recording and secure transmission of pressure and temperature to detect deviations promptly
• Configurable measurement cycles (e.g. night measurements) to match operator requirements
• Cloud-based analysis and centralized data management for proactive maintenance and automated alerts
• Designed to reduce water losses and improve network maintenance efficiency

Special features

• High-precision leak detection using SebaKMT sensor technology
• Robust waterproof design (IP68) suitable for deep shafts and main supply lines
• Secure, loss-free data transmission with AES 128-bit encryption
• NSF certification for safe use in drinking water systems
• Versatile mounting options: magnetic ring or threaded adapter
• Quick installation and setup via the SmartEAR®-GO! app (Android & iOS)
• Long battery life for extended autonomous operation
• Connectivity optimized for deep or difficult locations: NB-IoT, LTE-M and Bluetooth
• Cloud storage and analysis via POSEYEDON® Cloud

Implementation / Operation
The device is installed on-site using a magnetic ring or threaded adapter. Measurement cycles can be individually configured (for example night-time measurement to use low background noise). Recorded measurements are transmitted securely to the POSEYEDON® Cloud for visualization, automated alerting and network optimisation. A 3D product view (GLB model) is available to inspect device layout and mounting options.

Technical specifications

• Sensors: acoustic, pressure, temperature
• Pressure range and accuracy: 0–16 bar, ±0.9%
• Temperature range and accuracy: -20 °C to +80 °C, ±2 °C
• Protection class: IP68 (dustproof and waterproof)
• Data security: AES 128-bit encryption
• Certifications: NSF (suitable for drinking water systems)
• Connectivity: NB-IoT, LTE-M, Bluetooth
• Cloud: POSEYEDON® Cloud (centralized data management, analysis and storage)
• Mobile app: SmartEAR®-GO! for setup and configuration (Android & iOS)
• Mounting: magnetic ring or threaded adapter
• Installation: quick setup and commissioning via app
• Other: 3D model available (GLB), long battery life, configurable measurement cycles
