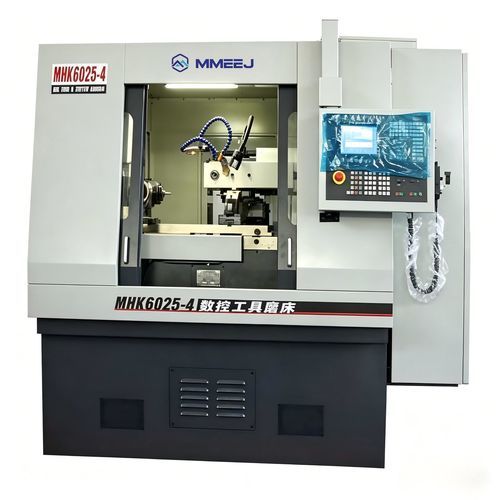

Tool grinding machine MHK6025 series

workpieceCNC4-axis

Product overview
The CNC tool grinding machine adopts a Siemens 828DBASIC four-axis CNC control system and AC servo unit drive, enabling four-axis, four-linkage operation:

• Longitudinal movement of the worktable
• Transverse movement of the grinding head
• Vertical movement of the grinding head
• Rotary movement of the CNC indexing head

Technical table
item | Unit | MHK6025-4 | MHK6025-3 | MHK6025-2
Number of control axes | / | 4 | 3 | 2
Maximum workpiece rotation diameter | mm | 250 | 250 | 250
Front and rear tip distance | mm | 450 | 450 | 450
Longitudinal movement of the worktable | mm | 400 (X-axis) | 400 (X-axis) | 400 (X-axis)
Worktable size | mm | 900×135 | 900×135 | 900×135
Grinding head rotation angle in the horizontal plane | ° | 360 | 360 | 360
Grinding head rotation angle in the vertical plane | ° | ±15 | ±15 | ±15
Vertical movement of the grinding head | mm | 200 (Y-axis) | 200 (Y-axis) | 200
Transverse movement of the grinding head | mm | 200 (Z-axis) | 200 (Z-axis) | 200
X, Y, Z axis resolution | mm | 0.001 | 0.001 | 0.001
A-axis resolution | ° | 0.001 | 0.001 | 0.001
Grinding wheel spindle speed | rmp/min | 3000/5600 | 3000/5600 | 3000/5600
CNC chuck spindle taper bore Morse code | / | Morse 5 | Morse 5 | Morse 5
Chuck spindle rotation in the horizontal plane | ° | 360 | 360° | 360°
Spindle motor power | kW | 2.2 | 2.2 | 1.1
Machine weight | kg | 2800 | 2800 | 1150
Machine dimensions | mm | 2260×1600×2830 | 2260×1600×2830 | 1850×1500×1900

Characteristics / technical specifications

• Control system: Siemens 828DBASIC four-axis CNC control system
• Drive: AC servo unit drive
• Four-linkage operation: longitudinal (worktable), transverse (grinding head), vertical (grinding head), rotary (CNC indexing head)
• Models: MHK6025-4 (4 axes), MHK6025-3 (3 axes), MHK6025-2 (2 axes)
• Maximum workpiece rotation diameter: 250 mm (all models)
• Front and rear tip distance: 450 mm (all models)
• Worktable travel (X-axis): 400 mm (all models); worktable size: 900×135 mm
• Grinding head rotation: horizontal 360°; vertical ±15°
• Grinding head travel: vertical (Y-axis) 200 mm; transverse (Z-axis) 200 mm
• Axis resolution: X/Y/Z 0.001 mm; A-axis 0.001°
• Grinding wheel spindle speed: 3000 / 5600 rpm
• CNC chuck spindle taper bore: Morse 5
• Chuck spindle rotation (horizontal plane): 360°
• Spindle motor power: 2.2 kW (MHK6025-4 & MHK6025-3), 1.1 kW (MHK6025-2)
• Machine weight: 2800 kg (MHK6025-4 & MHK6025-3), 1150 kg (MHK6025-2)
• Machine dimensions (L×W×H): MHK6025-4/3 = 2260×1600×2830 mm; MHK6025-2 = 1850×1500×1900 mm
