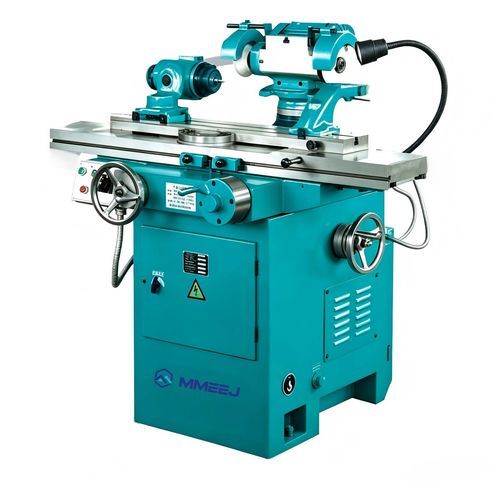

External cylindrical grinding machine M series

internal cylindricalfor gearstool

Overview
The universal tool grinder is suitable for grinding tools made of high-speed steel, cemented carbide and similar materials. Available in models M6025K and 2M9125C, it combines cylindrical and tool-grinding functions for versatile workshop use.

Applications

• Ball, face and end milling cutters
• Reamers and taps
• Turning and planing tools
• Gear shapers and special cutting tools

Design and operation
This multipurpose grinder integrates universal cylindrical grinding and tool grinding into a compact structure with hydraulic or manual worktable operation. The worktable supports automatic reciprocating motion with stepless speed adjustment and can be operated manually. The machine performs dry and wet grinding and handles internal/external cylindrical and conical surfaces, faces, bevels and grooves. The grinding head offers wide rotation in horizontal and vertical planes and a range of spindle speeds to suit different abrasive wheels and tool geometries.

Specifications table
Items | Unit | M6025K | 2M9125C
Maximum workpiece rotation diameter | mm | 250 | 250
Front and rear tip distance | mm | 650 | 630
Longitudinal movement of the worktable | mm | 400 | 400
Worktable dimensions | mm | 940x135 | 940x135
Grinding head rotation angle in the horizontal plane | ° | 360 | 360
Grinding head rotation angle in the vertical plane | ° | ±15 | ±15
Vertical movement of the grinding head | mm | 230 | 210
Transverse movement of the worktable | mm | 230 | 210
Grinding wheel spindle speed | r/min | 2650/3800/5350/7600 | 3000/5600
Chuck spindle rotation in the horizontal plane | ° | 360 | 360
Spindle motor power | kW | 0.45/0.6 | 1.1
Machine weight | kg | 1000 | 1150
Machine dimensions | mm | 1350x1275x1250 | 1350x1340x1300

Technical features

• Maximum workpiece rotation diameter: 250 mm (M6025K / 2M9125C)
• Front and rear tip distance: 650 mm (M6025K) / 630 mm (2M9125C)
• Longitudinal table travel: 400 mm
• Worktable dimensions: 940 x 135 mm
• Grinding head horizontal rotation: 360°
• Grinding head vertical rotation: ±15°
• Vertical travel of grinding head: 230 mm (M6025K) / 210 mm (2M9125C)
• Transverse table travel: 230 mm (M6025K) / 210 mm (2M9125C)
• Grinding wheel spindle speeds: 2650 / 3800 / 5350 / 7600 r/min (M6025K); 3000 / 5600 r/min (2M9125C)
• Chuck spindle horizontal rotation: 360°
• Spindle motor power: 0.45 / 0.6 kW (M6025K); 1.1 kW (2M9125C)
• Machine weight and footprint as specified for each model
