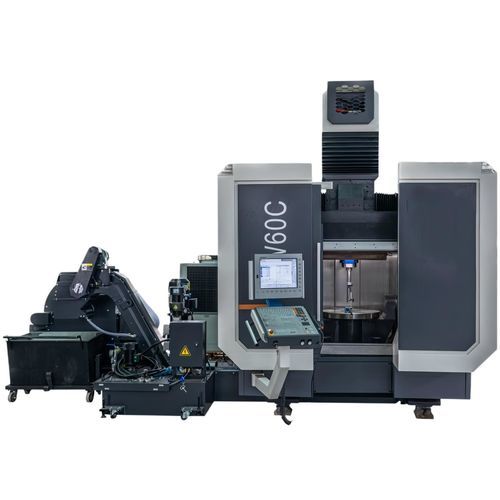

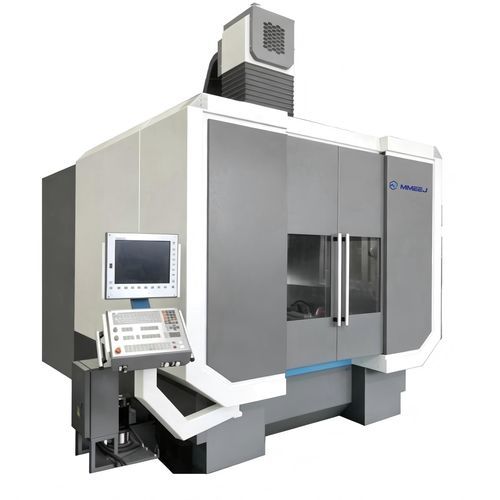

5-axis CNC machining center SVW seriesverticalHSK A-63SK40
Add to favorites
Compare this product
Characteristics
- Number of axes
- 5-axis
- Spindle orientation
- vertical
- Spindle mount
- HSK A-63, SK40, HSK-A 100, HSK-T63, HSK-T100
- Number of tool stations
- 30 tools
- Other characteristics
- high-speed
- X travel
460 mm, 800 mm, 1,250 mm
(18.11 in, 31.5 in, 49.21 in)- Y travel
600 mm, 800 mm, 1,300 mm
(23.62 in, 31.5 in, 51.18 in)- Z travel
400 mm, 600 mm, 800 mm
(15.75 in, 23.62 in, 31.5 in)- Rotational speed
10,000 rpm, 12,000 rpm, 18,000 rpm, 30,000 rpm
(62,832 rad.min-1, 75,398 rad.min-1, 113,097 rad.min-1, 188,496 rad.min-1)- Power
Min.: 10 kW
(13.6 hp)Max.: 54 kW
(73.42 hp)- Work feed X-axis
Min.: 20 mm/min
(0.01 in/s)Max.: 20,000 mm/min
(13.12 in/s)- Work feed Y-axis
Min.: 20 mm/min
(0.01 in/s)Max.: 20,000 mm/min
(13.12 in/s)- Work feed Z-axis
Min.: 20 mm/min
(0.01 in/s)Max.: 20,000 mm/min
(13.12 in/s)- Table load capacity
500 kg, 850 kg, 2,000 kg, 2,500 kg
(1,102 lb, 1,874 lb, 4,409 lb, 5,512 lb)- Tool weight (max)
6 kg, 8 kg, 10 kg, 25 kg
(13.2 lb, 17.6 lb, 22 lb, 55.1 lb)- Positioning accuracy
0.006 mm
(0.00024 in)- Repeatability
0.004 mm
(0.00016 in)- Weight
10 t, 16 t, 35 t
(11.02 us ton, 17.64 us ton, 38.58 us ton)- Overall length
4,000 mm, 5,400 mm, 6,900 mm
(157.5 in, 212.6 in, 271.7 in)- Overall width
3,800 mm, 4,500 mm, 5,300 mm
(149.6 in, 177.2 in, 208.7 in)- Overall height
3,200 mm, 3,500 mm, 3,900 mm
(126 in, 137.8 in, 153.5 in)
Description
Overview
The SVW series is a vertical five-axis linked machining center equipped with a cradle-type A/C rotary table, high-speed electric spindle and precision imported components. It permits single-clamping full-process machining of complex parts and large workpieces; high rapid traverse speeds reduce non-machining time and support higher production throughput.
Main specifications
Applications
Options and configurations
Ordering information
The SVW series is a vertical five-axis linked machining center equipped with a cradle-type A/C rotary table, high-speed electric spindle and precision imported components. It permits single-clamping full-process machining of complex parts and large workpieces; high rapid traverse speeds reduce non-machining time and support higher production throughput.
Main specifications
- Series & models: SVW series (SVW60C, SVW60C-F, SVW80C, SVW80C-F, SVW125A, SVW125A-F)
- Bench diameters: φ600 / φ600 / φ800 / φ725 / φ1200 / φ1200 (model dependent)
- Maximum bench load: ≤500 kg to 2500 kg depending on model
- Maximum workpiece size (D×H): up to 1360×700 mm (model dependent)
- X/Y/Z travels: from 460/600/400 mm up to 1250/1300/800 mm (model dependent)
- A-axis swing: up to ±140°; C-axis rotation: 360°
- Cutting feed rate: 20–20,000 mm/min (some variants limited to 10,000 mm/min)
- Rapid traverse (X/Y/Z): up to 60,000 mm/min (model dependent)
- Spindle options: multiple speed and power configurations (examples up to 30,000 rpm; power ranges shown up to 45/54 kW)
- Spindle taper options: HSK-A63, HSK-T63, SK40 (724 taper), HSK-A100, HSK-T100
- Tool magazine (optional): typically 30 pieces (some variants 40); tool change by robotic arm
- NC system (optional): Heidenhain TNC640
- Total machine power: ~88–109 kVA; approximate weight: ~10 t to ~35 t depending on model
Applications
- Suitable for aerospace, automotive, mould & die, energy, heavy machinery and precision equipment manufacturing
- Ideal for machining complex 5-sided geometries, freeform surfaces and large/heavy parts in a single setup
Options and configurations
- Multiple spindle speed/power configurations and taper options to match cutting requirements
- Optional tool magazine capacities and robotic tool changer
- Control options (Heidenhain TNC640) and auxiliary systems: coolant, chip conveyors, and workholding fixtures
Ordering information
- Specify model reference (SVW60C / SVW60C-F / SVW80C / SVW80C-F / SVW125A / SVW125A-F) and desired options when requesting a quote
- Contact supplier for detailed configuration, site power/foundation requirements and delivery schedule
