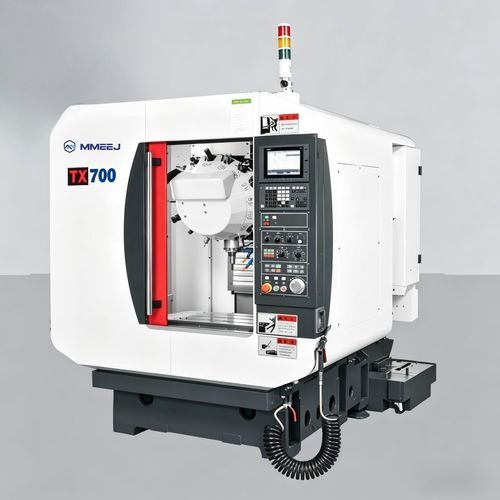

CNC drilling and tapping machine TX series

vertical3-axisfor steel

Product overview
Vertical CNC drilling and tapping centers designed for high-speed drilling, tapping and multi-process machining. Compact footprint and stable precision make them suitable for batch production of small to medium precision parts in electronics, automotive and medical sectors.

Key features

• Multi-process capability: drilling, tapping, milling, chamfering and boring in a single setup to reduce clamping errors and cycle time.
• Material compatibility: effective on aluminium alloys, copper, stainless steel and plastics; ideal for lightweight precision components.
• Flexible production: quick program and tooling changes support small-batch and multi-variant manufacturing.

Machine Specifications

• Model: TX-500 | TX-700 | TX-1000
• Travel (mm): X = 500 | 700 | 1000; Y = 400 | 400 | 500; Z = 330 | 330 | 350
• Spindle nose to table (mm): 170-500 | 170-500 | 150-500
• Spindle speed: 12,000 rpm (all models)
• ATC system: disc-type (armless), 21-tool magazine; max tool Ø (without adjacent) 60/80 mm; max length 250 mm; max weight 3 kg; tool shank BT-30
• Motors: Spindle motor 3.5 kW continuous / 5.5 kW (15 min); XY/Z axes motors 1.5 / 1.5 / 2.2 kW
• Work table: area 650x400 | 850x400 | 1100x500 mm; max load 250 | 250 | 350 kg; T-slot 3x14x125 mm
• Speeds: Rapid X/Y/Z = 48/48/48 m/min; Cutting feedrate 1–20,000 mm/min (TX-500/700), 1–30,000 mm/min (TX-1000)
• Controller: Mitsubishi M80
• Miscellaneous: machine weight ~3000 | ~3500 | ~4100 kg; power consumption 15 KVA; coolant tank 200 | 200 | 300 L; pneumatic supply 6 kg/cm²

Technical data & typical applications

• Series: TX (TX-500, TX-700, TX-1000)
• Suitable for batch machining of small-to-medium precision parts in 3C electronics, automotive components and medical devices
• Key advantages: high spindle speed, compact footprint, multi-process capability and armless ATC for efficient tooling
