3-axis CNC machining center DM series

verticalfor steeltable type

Product overview

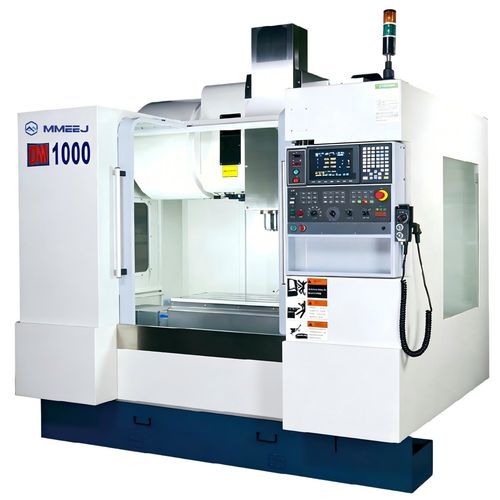

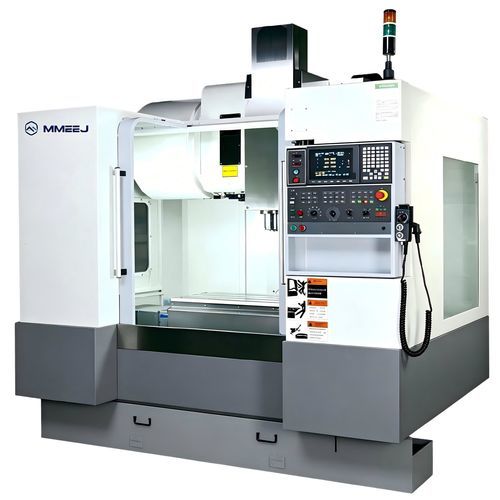

The DM Series vertical machining center is designed for machining complex mold contours, automotive components and box-type parts. Available in DM-600, DM-800, DM-1000 and DM-1200, the series is tailored for medium-to-small mold-part production. High torque at low speeds enables efficient machining of difficult-to-cut materials (high-strength steels, high-temperature alloys) as well as standard steels.

Technical table
Model | DM-600 | DM-800 | DM-1000 | DM-1200
X-axis Travel (mm) | 600 | 800 | 1020 | 1200
Y-axis Travel (mm) | 410 | 500 | 560 | 600
Z-axis Travel (mm) | 540 | 540 | 600 | 675
Spindle nose to worktable surface (mm) | 100~640 | 150~690 | 135-735 | 100~775
Spindle Speed (rpm/min) | 24000 | 18000 | 18000 | 18000
Automatic Tool Changing System - Number of Tools (pcs) | 24 | 24 | 24 | 24
Max. tool diameter (mm) | 80/125 | 80/125 | 80/125 | 80/125
Max. tool length (mm) | 200 | 270 | 300 | 300
Max. tool weight (kg) | 8 | 8 | 8 | 7
Tool changing method | Blade Arm | Blade Arm | Blade Arm | Blade Arm
Tool specification | BT30 | BBT-40 | BBT-40 | BBT-40
Spindle motor (continuous/30 minutes) (kW) | 3.7/4.6 | 15/18.5 | 15/18.5 | 15/18.5
Motors on X/Y/Z-axis (kW) | 1.5/1.5/2.0 | 2.0/2.0/3.5 | 2.0/2.0/3.5 | 3.5/3.5/3.5
Workbench dimensions (mm) | 700x400 | 910x500 | 1000x560 | 1220x620
Worktable max. load capacity (kg) | 350 | 500 | 750 | 1000
T-slot (slot x width x center distance) (mm) | 5x14x63 | 5x18x100 | 5x18x100 | 5x18x100
Rapid speed X/Y/Z (M/min) | 36 / 36 / 24 | 36 / 36 / 24 | 36 / 36 / 24 | 30 / 30 / 24
Cutting feed rate (M/min) | 1-20000 | 1-20000 | 1-20000 | 1-20000
Controller | Mitsubishi M80 | Mitsubishi M80 | Mitsubishi M80 | Mitsubishi M80
Machine Weight (kg) | 4200 | 5300 | 7000 | 8500
Power Consumption (KVA) | 15 | 20 | 25 | 35
Coolant Tank Capacity (L) | 200 | 290 | 290 | 360
Air power (kg/cm²) | 6 | 6 | 6 | 6

Key specifications

• Series: DM Series (DM-600, DM-800, DM-1000, DM-1200)
• Primary applications: complex mold contours, automotive parts and box-type components; optimal for medium-to-small mold-part manufacturing
• Designed to deliver high torque at low speeds for machining hard-to-cut materials such as high-strength steels and high-temperature alloys
• Spindle options: 24000 rpm (DM-600) or 18000 rpm (DM-800/DM-1000/DM-1200)
• Automatic tool changer: 24 tools, blade-arm type; tool taper BT30 (DM-600) or BBT-40 (DM-800/1000/1200)
• Spindle motor power: 3.7/4.6 kW (DM-600) up to 15/18.5 kW on larger models
• Axis motors (X/Y/Z) vary by model, up to 3.5 kW per axis on the largest model
• Workbench sizes: 700x400 mm to 1220x620 mm; table capacities: 350–1000 kg
• Rapid travel: up to 36 m/min (X/Y) and 24 m/min (Z); cutting feed range 1–20000 m/min
• Controller: Mitsubishi M80
• Machine weight: 4200–8500 kg depending on model
• Power consumption: 15–35 KVA; coolant capacity: 200–360 L; air requirement: 6 kg/cm²
