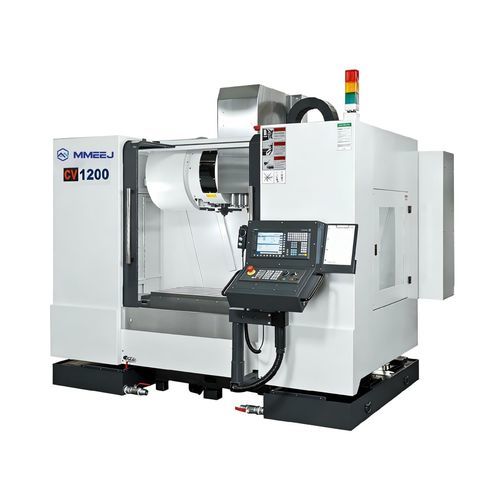

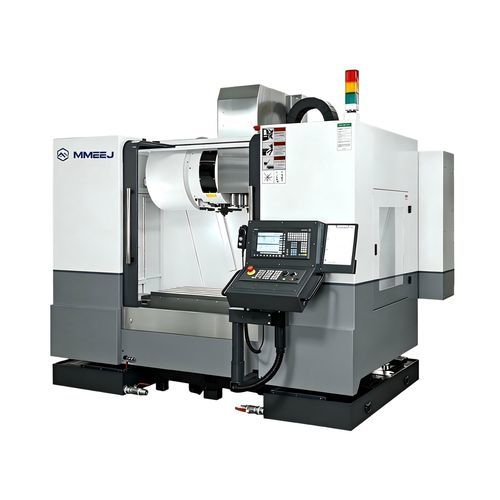

3-axis CNC machining center CV series

verticalBT 40BT 50

Overview
The CV Series vertical machining centers feature a rigid machine bed engineered by simulation to maximize rigidity while minimizing mass. They are designed for machining plate-like, disc-like and shell-like components, precision parts and molds. Each machine supports multiple operations in a single setup—milling, boring, drilling, reaming, counterboring and tapping—and is supplied with an Automatic Tool Changer (ATC), fully enclosed safety cover, automatic lubrication, cooling system and portable Manual Pulse Generator (MPG).

Technical overview (CV Series)

• Models: CV-600, CV-800, CV-1000A, CV-1000B, CV-1200A(B), CV-1400(A/B), CV-1600, CV-2000.
• Travel ranges (approx.): X 600–2000 mm, Y 410–900 mm, Z 540–800 mm; spindle nose to table varies by model.
• Spindle speed: up to 10,000 rpm (CV-600); most models 6,000–8,000 rpm; some variants offer dual-speed options.
• Tool magazine: typically 24 tools (variants up to 30); tool change: blade arm; tool taper: BT-40 or BT-50 depending on model.
• Spindle motor power (continuous / 30 min): from ≈5.5 kW up to 18.5 kW (optional higher ratings on some models).
• Workbench sizes and max load: from 700×400 mm / 350 kg up to 2100×850 mm / 3000 kg depending on model.
• Control: Mitsubishi M80 standard. Machine weight approx. 4,200–21,000 kg. Power supply 15–40 kVA. Water tank 200–550 L. Compressed air: 6 kg/cm².

Features

• Rigid bed designed by engineering simulation to maximize stiffness while reducing mass.
• Automatic Tool Changer (ATC) with blade-arm changeover.
• Fully enclosed safety cover for operator protection.
• Automatic lubrication and integrated cooling system.
• Portable Manual Pulse Generator (MPG) included.
• Capable of multi-operation machining in one setup (milling, boring, drilling, reaming, counterboring, tapping).
• Various spindle, magazine and motor options to match application requirements.

Applications

• Machining of plate-like, disc-like and shell-like components.
• Precision parts and tool & die / mold machining.
• Medium- to large-size component production where rigidity and multi-operation capability are required.

Control & Options

• Standard CNC: Mitsubishi M80. Portable MPG supplied.
• Options: spindle power variants, different magazine capacities, coolant and filtration packages, additional safety and automation options.
