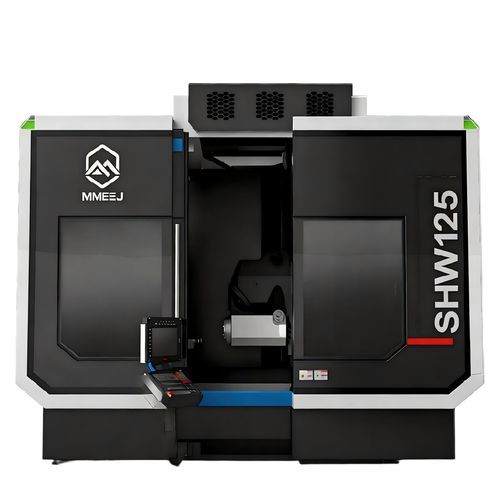

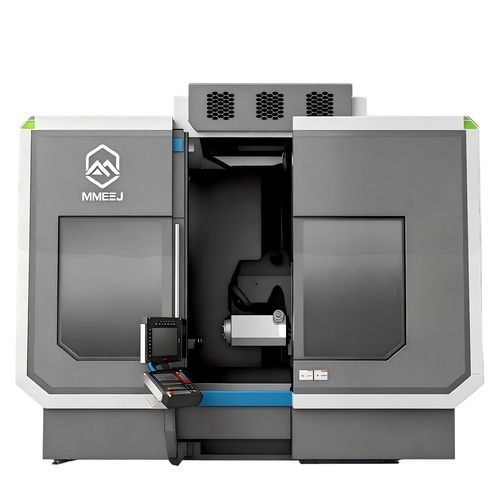

5-axis CNC machining center SHW seriesuniversalrotating tableSK50
Add to favorites
Compare this product
Characteristics
- Number of axes
- 5-axis
- Spindle orientation
- universal
- Structure
- rotating table
- Spindle mount
- HSK-A 100, SK50
- Other characteristics
- high-speed, high-speed
- X travel
1,000 mm, 1,250 mm, 1,600 mm, 2,100 mm
(39.37 in, 49.21 in, 62.99 in, 82.68 in)- Y travel
1,000 mm, 1,250 mm, 1,600 mm, 2,100 mm
(39.37 in, 49.21 in, 62.99 in, 82.68 in)- Z travel
1,000 mm, 1,400 mm, 1,700 mm
(39.37 in, 55.12 in, 66.93 in)- Rotational speed
Min.: 0 rpm
(0 rad.min-1)Max.: 10,000 rpm
(62,832 rad.min-1)- Power
35 kW, 43 kW, 52.4 kW, 54 kW, 75 kW
(47.59 hp, 58.46 hp, 71.24 hp, 73.42 hp, 101.97 hp)- Work feed X-axis
Min.: 20 mm/min
(0.01 in/s)Max.: 20,000 mm/min
(13.12 in/s)- Work feed Y-axis
Min.: 20 mm/min
(0.01 in/s)Max.: 20,000 mm/min
(13.12 in/s)- Work feed Z-axis
Min.: 20 mm/min
(0.01 in/s)Max.: 20,000 mm/min
(13.12 in/s)- Table load capacity
2,000 kg, 4,000 kg, 6,000 kg
(4,409 lb, 8,818 lb, 13,228 lb)- Positioning accuracy
0.006 mm
(0.00024 in)- Repeatability
0.004 mm
(0.00016 in)- Weight
20 t, 40 t, 50 t
(22.05 us ton, 44.09 us ton, 55.12 us ton)- Overall length
5,300 mm, 5,500 mm, 7,000 mm, 9,600 mm
(208.7 in, 216.5 in, 275.6 in, 378 in)- Overall width
5,200 mm, 6,300 mm, 6,800 mm, 8,000 mm
(204.7 in, 248 in, 267.7 in, 315 in)- Overall height
3,600 mm, 3,700 mm, 4,000 mm, 5,300 mm
(141.7 in, 145.7 in, 157.5 in, 208.7 in)
Description
Overview
The SHW Series is a vertical-to-horizontal convertible 5-axis machining center designed for single-setup, multi-process machining of large and complex workpieces. Equipped with a B-axis milling head, a continuously driven C-axis rotary table and high-speed electric spindle, the series supports full 5-axis operations and significantly reduces non-cutting time with rapid traverses up to 60,000 mm/min on most models (SHW210: 40,000 mm/min). Models: SHW100, SHW125, SHW160, SHW210.
Main technical data
Applications
Production benefits
Options & configurations
Contact
For technical drawings, configuration options or a quotation, contact our sales team with your part specifications and production requirements.
The SHW Series is a vertical-to-horizontal convertible 5-axis machining center designed for single-setup, multi-process machining of large and complex workpieces. Equipped with a B-axis milling head, a continuously driven C-axis rotary table and high-speed electric spindle, the series supports full 5-axis operations and significantly reduces non-cutting time with rapid traverses up to 60,000 mm/min on most models (SHW210: 40,000 mm/min). Models: SHW100, SHW125, SHW160, SHW210.
Main technical data
- Models and bench effective dimensions (Diameter × Width): SHW100 φ1,100×950 mm; SHW125 φ1,250×1,160 mm; SHW160 φ1,600×1,250 mm; SHW210 φ1,700 mm
- Maximum load capacity: SHW100/SHW125 ≤ 2,000 kg; SHW160 ≤ 4,000 kg; SHW210 ≤ 6,000 kg
- X/Y/Z travel ranges (mm): SHW100 1000/1000/1000; SHW125 1250/1250/1000; SHW160 1600/1600/1400; SHW210 2100/2100/1700
- B axis swing: -30° to 180°; C axis: continuous rotation (n×360°)
- Cutting feed rate: 20–20,000 mm/min; Rapid traverse speed: up to 60,000 mm/min (SHW210: 40,000 mm/min)
- Spindle speeds: 0–10,000 rpm (models SHW100/125) or 0–7,000 rpm (SHW160/210); spindle tapers: SK50 or HSK-A100 (depending on model)
- Spindle power (S1/S6-40%): examples — SHW100/125 35/43 kW; SHW160 52.4/54 kW; SHW210 75/75 kW
- Tool magazine (optional): 40–60 places; automatic tool change by robotic arm; max tool diameter (adjacent empty) φ250 mm
- Precision: X/Y/Z positioning accuracy 0.006 mm; repeatability 0.004 mm; B/C axis positioning 6 s; RTCP linkage precision ±0.02 mm
- Optional CNC: Heidenhain TNC640; total machine power: 95–150 kVA; machine weight range approx. 20–50 t
Applications
- Large-part machining for aerospace, automotive, energy and heavy equipment sectors
- Mold and die production requiring complex 5-axis contours
- Machining of rotary and cylindrical components where bench rotation and high load capacity are required
Production benefits
- Single-setup machining reduces part handling and cumulative errors
- Convertible vertical/horizontal configuration increases process flexibility for varied part geometries
- High rapid traverse minimizes non-cutting time and improves throughput
- Precise axis control and RTCP ensure consistent multi-axis accuracy
Options & configurations
- Optional tool magazine capacities (40–60 positions) and robotic arm ATC
- Spindle taper choices: SK50 (7:24) or HSK-A100 depending on model
- Customizable CNC (Heidenhain TNC640) and electrical power configurations
Contact
For technical drawings, configuration options or a quotation, contact our sales team with your part specifications and production requirements.
