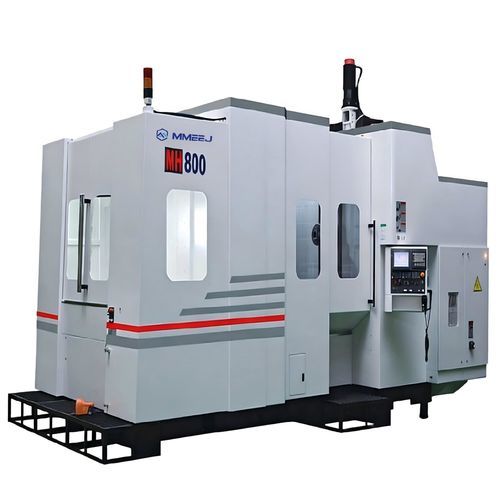

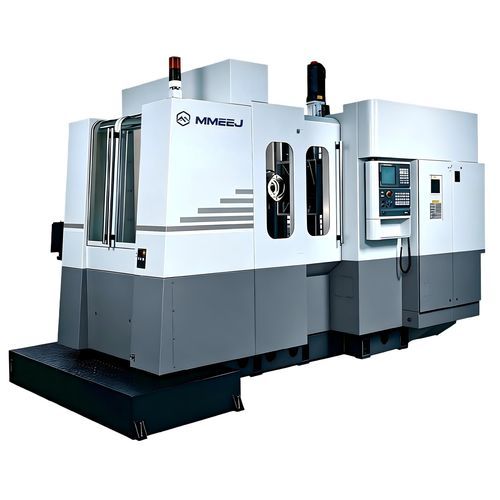

3-axis machining center MH serieshorizontalBT 40BT 50
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- horizontal
- Spindle mount
- BT 40, BT 50, ISO 40
- Number of tool stations
- 60 tools, 40 tools
- Associated functions
- milling, drilling, tapping
- Other characteristics
- high-speed, high-precision, with automatic tool changer
- X travel
1,000 mm, 1,300 mm
(39.37 in, 51.18 in)- Y travel
850 mm, 1,200 mm
(33.46 in, 47.24 in)- Z travel
950 mm, 1,200 mm
(37.4 in, 47.24 in)- Rotational speed
6,000 rpm, 10,000 rpm
(37,699 rad.min-1, 62,832 rad.min-1)- Power
22 kW, 26 kW
(29.91 hp, 35.35 hp)- Workpiece max height
1,000 mm, 1,300 mm
(39 in, 51 in)- Work feed X-axis
32,000 mm/min
(21 in/s)- Work feed Y-axis
32,000 mm/min
(21 in/s)- Work feed Z-axis
32,000 mm/min
(21 in/s)- Table load capacity
1,000 kg, 2,000 kg
(2,205 lb, 4,409 lb)- Tool weight (max)
8 kg, 20 kg, 30 kg
(17.6 lb, 44.1 lb, 66.1 lb)- Tool-changing time
5 s, 8 s
- Weight
23,000 kg, 25,000 kg
(50,706.32 lb, 55,115.57 lb)- Overall length
5,966 mm, 6,991 mm
(234.9 in, 275.2 in)- Overall width
3,470 mm, 4,326 mm
(136.6 in, 170.3 in)- Overall height
3,362 mm, 3,948 mm
(132.4 in, 155.4 in)
Description
Product description
The MH series horizontal machining center is a family of horizontal machining centers designed for machining box-shaped, shell-shaped and disc-shaped workpieces. Its high-speed linear rolling guideway enables fast and stable axis motion. After a single clamping, a workpiece can undergo multiple operations including milling, boring, drilling, reaming and tapping. The machine integrates automation functions and is supplied with an automatic tool changer (ATC), automatic lubrication system, cooling system, portable manual pulse generator (MPG) and an integrated protective cover.
Technical data (summary)
Models: MH-800A / MH-800B / MH-1000B
Travel X/Y/Z (mm): 1000/850/950 — 1000/850/950 — 1300/1200/1200
Spindle centre to pallet face (mm): 60-910 / 60-910 / 80-1280
Spindle nose to pallet centre (mm): 150-1100 (215-1100)* / 150-1100 (215-1100)* / 200-1400 (285-1400)*
Pallet size (mm): 800×800 / 800×800 / 1000×1000
Max workpiece Ø (mm): Ø1000 / Ø1000 / Ø1300
Max pallet load (kg): 1000 / 1000 / 2000
Spindle max speed (rpm): up to 10000 (model dependent)
ATC tool capacity: 60 / 40 / 60
Controller: FANUC 0i-MD
Power requirement: 42 KVA
Floor area / Weight (mm / kg): 5966×3470 / 23000 — 6991×4326 / 25000 (model dependent)
Key features / technical specifications
The MH series horizontal machining center is a family of horizontal machining centers designed for machining box-shaped, shell-shaped and disc-shaped workpieces. Its high-speed linear rolling guideway enables fast and stable axis motion. After a single clamping, a workpiece can undergo multiple operations including milling, boring, drilling, reaming and tapping. The machine integrates automation functions and is supplied with an automatic tool changer (ATC), automatic lubrication system, cooling system, portable manual pulse generator (MPG) and an integrated protective cover.
Technical data (summary)
Models: MH-800A / MH-800B / MH-1000B
Travel X/Y/Z (mm): 1000/850/950 — 1000/850/950 — 1300/1200/1200
Spindle centre to pallet face (mm): 60-910 / 60-910 / 80-1280
Spindle nose to pallet centre (mm): 150-1100 (215-1100)* / 150-1100 (215-1100)* / 200-1400 (285-1400)*
Pallet size (mm): 800×800 / 800×800 / 1000×1000
Max workpiece Ø (mm): Ø1000 / Ø1000 / Ø1300
Max pallet load (kg): 1000 / 1000 / 2000
Spindle max speed (rpm): up to 10000 (model dependent)
ATC tool capacity: 60 / 40 / 60
Controller: FANUC 0i-MD
Power requirement: 42 KVA
Floor area / Weight (mm / kg): 5966×3470 / 23000 — 6991×4326 / 25000 (model dependent)
Key features / technical specifications
- Series: MH series (MH-800A, MH-800B, MH-1000B)
- Applications: machining box-shaped, shell-shaped and disc-shaped parts; supports milling, boring, drilling, reaming and tapping after single clamping
- Guideway: high-speed linear rolling guideway design
- Automation & reliability: high precision, high automation, high reliability and high mechatronics integration
- Standard equipment: Automatic Tool Changer (ATC), automatic lubrication system, cooling system, portable manual pulse generator (MPG), integrated protective cover
- Travel X/Y/Z (mm): 1000/850/950 (MH-800A/B) — 1300/1200/1200 (MH-1000B)
- Pallet sizes (mm): 800×800 (MH-800A/B) — 1000×1000 (MH-1000B)
- Max pallet load (kg): 1000 (MH-800A/B) — 2000 (MH-1000B)
- Spindle max speed (rpm): up to 10000 (depending on model)
- ATC tool capacity: up to 60 tools (model dependent)
- Controller: FANUC 0i-MD
- Power requirement: 42 KVA
