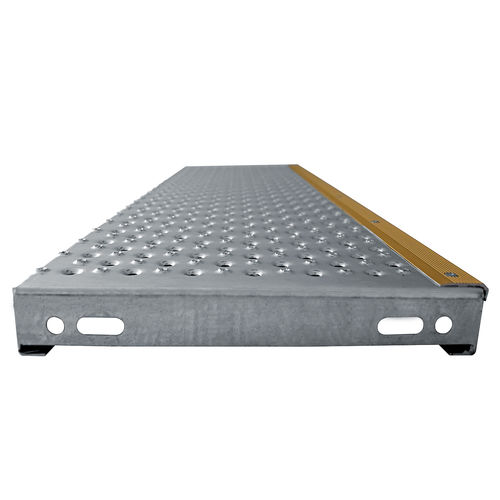

Stairway step NEZ LICORNE

Stairway step - NEZ LICORNE - Meiser
Stairway step - NEZ LICORNE - Meiser
Stairway step - NEZ LICORNE - Meiser - image - 2
Add to favorites
Compare this product
Go to the Meiser website for more information

Description

Product information

Characteristics
  • Step composed of a perforated plate and a serrated aluminum nosing (finishes: natural, gold or black) fixed by rivets or adhesive.
  • Perforated edging for fixing to stringers.
  • Available perforations: ADERSTEP-TOLPICOT (void 2%), STEPHUIT-TOLHUIT (void 7%), STEPCLAIR-TOLMIXTE (void 21%).
  • Material: hot-dip galvanized steel according to ISO 1461.


Use
  • For stair pitch minimum 27° (with 50 mm overlap).
  • Compliant with French ERP and APH accessibility standards.


Installation
  • Fixed on stringers with Ø12 mm bolts (available on request).


Technical specifications
  • Model: LICORNE
    Widths (mm): 900; 1000; 1200; 1400
    Depth (mm): 330
    Heights (mm): 50 (900 / 1000 / 1200 mm) or 75 (1400 mm)
    Mass (kg/pc): 7.1; 7.8; 9.2; 10.7
  • Nosing: serrated aluminum — finishes: natural, gold, black
  • Nosing attachment: rivets or adhesive
  • Material: hot-dip galvanized steel (ISO 1461)
  • Perforation options: ADERSTEP-TOLPICOT (void 2%), STEPHUIT-TOLHUIT (void 7%), STEPCLAIR-TOLMIXTE (void 21%)
