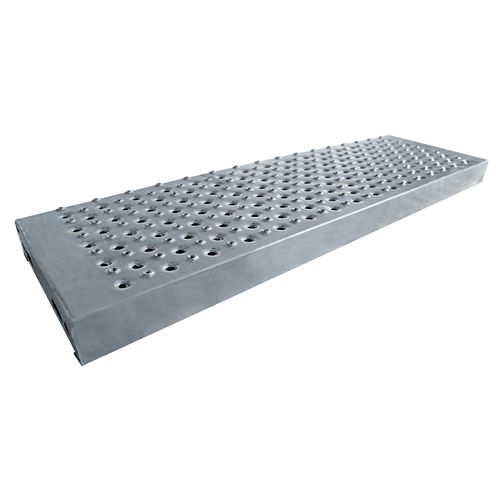

Stairway step 240

Product information

• Perforated edging for attachment to side plates
• Material: hot-dip galvanized steel according to ISO 1461

Use

• Minimum stair pitch: 43° (with 50 mm overlap)
• Conforms to French accessibility standards (ERP, APH)

Installation

• Fixed on side plates with Ø 12 mm bolts (available on request)

Technical data
Perforation types

• ADERSTEP-TOLPICOT (void 2%)
• STEPHUIT-TOLHUIT (void 7%)
• STEPCLAIR-TOLMIXTE (void 21%)

Table — ADERSTEP / STEPHUIT / STEPCLAIR (void 2% / 7% / 21%)
Width (mm): 600 | 700 | 800 | 900 | 1000 | 1200
Depth (mm): 240 | 240 | 240 | 240 | 240 | 240
Height (mm): 50 | 50 | 50 | 50 | 50 | 50
Mass (kg/piece): 3.9 | 4.5 | 5.1 | 5.7 | 6.3 | 7.4

Perforation STEPBLOC-TOLPLUS (void 47%)
Width (mm): 600 | 700 | 800 | 900 | 1000
Depth (mm): 240 | 240 | 240 | 240 | 240
Height (mm): 40 | 40 | 40 | 40 | 40
Mass (kg/piece): 3.9 | 4.5 | 5.1 | 5.7 | 6.3

Characteristics / Technical specifications

• Product family: Step series
• Standard depth: 240 mm
• Available widths: 600, 700, 800, 900, 1000 and (for some perforations) 1200 mm
• Available heights: 50 mm (ADERSTEP / STEPHUIT / STEPCLAIR), 40 mm (STEPBLOC)
• Mass per piece varies by width and perforation (see tables above)
• Perforation variants and void ratios: ADERSTEP-TOLPICOT 2%, STEPHUIT-TOLHUIT 7%, STEPCLAIR-TOLMIXTE 21%, STEPBLOC-TOLPLUS 47%
• Material finish: hot-dip galvanized steel (ISO 1461)
• Installation: fixed on side plates with Ø 12 mm bolts (available on request)
• Minimum recommended stair pitch: 43° (with 50 mm overlap)
• Conforms to French accessibility standards (ERP, APH)
• Brand: MEISER
