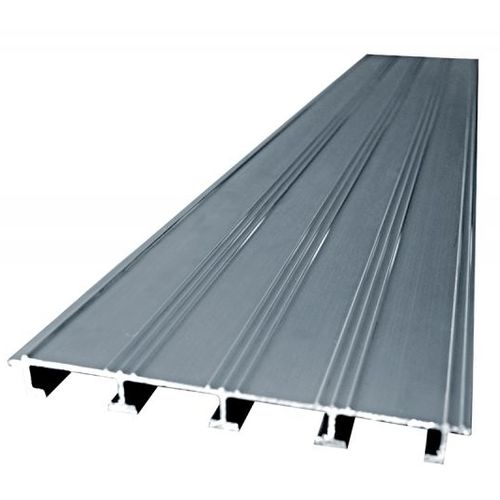

Stairway step NERVOPAL®

Product information

Characteristics

• Material: aluminum alloy 6060 T5
• Antislip nosing: NERVOPAL
• Perforated, welded reinforcement for attachment to side plates
• Centre of the step with antislip stripes
• Available as solid material or perforated (rectangular holes 80 x 15 mm, pitch 110 mm)

Use

• Stair tread or stepladder

Installation

• Bolted to side plates; stainless steel bolts H10 or H12 (available on request)

Technical data
Width (mm): 800 | 900 | 1000 | 1200
Depth (mm): 235
Height (mm): 50
Mass (kg/piece): 3.4 | 3.8 | 4.2 | 5.0

Characteristics / Technical specifications

• Material: aluminum alloy 6060 T5
• Antislip nosing: NERVOPAL
• Perforation option: rectangular holes 80 x 15 mm, axis 110 mm
• Reinforcement: perforated and welded for side plate attachment
• Centre: antislip stripes
• Installation: bolted to side plates with stainless steel bolts H10 or H12 (on request)
• Dimensions (mm): Width 800 / 900 / 1000 / 1200; Depth 235; Height 50
• Mass (kg/piece): 3.4 / 3.8 / 4.2 / 5.0
