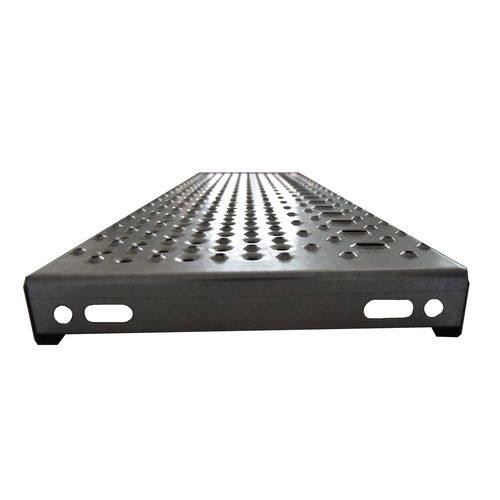

Contrast stairway step Armandie

Product information
Characteristics

• Perforation TOLHUIT: 5/8 mm upward embossed round holes, 8/13 mm downward embossed round holes, 19/10 mm elongated upward slots on the nosing; approx. 7% open area
• Visual contrast at the nosing for step edge identification
• Perforated edging to attach side plates (stringers)
• Material: Hot-dip galvanized steel according to ISO 1461

Use

• Suitable for stairs with a minimum pitch of 27° (with 50 mm overlap)
• Complies with French accessibility standards (ERP, APH)

Installation

• Fixed to side plates (stringers) with Ø12 mm bolts (bolts available on request)

Technical data
Width (mm): 800 | 900 | 1000 | 1200 | 1400
Depth (mm): 330 | 330 | 330 | 330 | 330
Height (mm): 50 | 50 | 50 | 50 | 75
Mass (kg/piece): 6.7 | 7.5 | 8.2 | 9.7 | 12.1

Characteristics / Technical specifications

• Model: Armandie Step
• Material: Hot-dip galvanized steel (ISO 1461)
• Perforation details: TOLHUIT — 5/8 mm upward embossed; 8/13 mm downward embossed; 19/10 mm elongated upward on nosing; ~7% open area
• Visual contrast: nosing provided for step edge visibility
• Edging: perforated edging to attach side plates (stringers)
• Recommended minimum stair pitch: 27° (with 50 mm overlap)
• Standards/Compliance: French accessibility standards (ERP, APH)
• Installation: fixed on side plates with Ø12 mm bolts (bolts provided on request)
• Available widths (mm): 800, 900, 1000, 1200, 1400
• Depth (mm): 330 (all widths)
• Height (mm): 50 for widths 800–1200 mm; 75 for width 1400 mm
• Mass per piece (kg): 6.7 (800 mm) / 7.5 (900 mm) / 8.2 (1000 mm) / 9.7 (1200 mm) / 12.1 (1400 mm)
