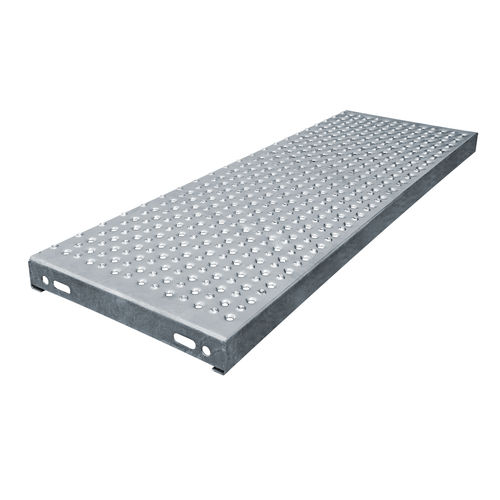

Stairway step CLASSIQUE

Product information
Perforated stair step composed of a smooth rear section and a perforated nosing at the front.

Characteristics

• Perforated step with a smooth rear edge (can accept LICORNE nosing step) and a standard perforated nosing
• Perforated edging for attachment to side plates
• Material: Hot-dip galvanized steel according to ISO 1461
• Reversible step
• Available perforation patterns: ADERSTEP-TOLPICOT (2% open area), STEPHUIT-TOLHUIT (7% open area), STEPCLAIR-TOLMIXTE (21% open area)

Use

• Designed for stair pitch angles of minimum 27° (with 50 mm overlap)
• Conforms to FR handicap standards (ERP and APH)

Installation

• Fixed to side plates with 12 mm diameter bolts (bolts supplied on request)

Technical data (table)
Width (mm): 900 | 1000 | 1200 | 1400
Depth (mm): 330 | 330 | 330 | 330
Height (mm): 50 | 50 | 50 | 75
Mass (kg/p): 7.1 | 7.8 | 9.2 | 10.7

Characteristics / technical specifications

• Model name: Step Depth 330 classic
• Material: Hot-dip galvanized steel (ISO 1461)
• Widths available (mm): 900, 1000, 1200, 1400
• Depth (mm): 330
• Heights (mm): 50 (for 900/1000/1200 widths), 75 (for 1400 width)
• Mass per piece (kg): 7.1 (900 mm), 7.8 (1000 mm), 9.2 (1200 mm), 10.7 (1400 mm)
• Features: perforated steps, smooth rear edge, reversible step, perforated edging for side plates
• Installation: fixed on side plates with 12 mm diameter bolts (bolts provided on request)
• Use conditions: minimum 27° pitch angle with 50 mm overlap; conforms to FR handicap standards (ERP and APH)
