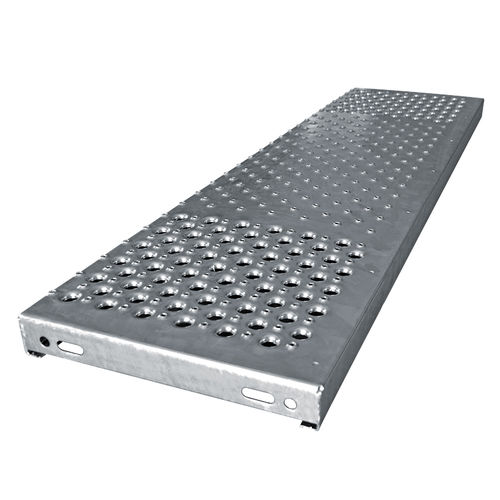

Stairway step 3Z

Product information
Characteristics

• Perforated step with TOLMIXTE edging and TOLPICOT centre
• Perforated edging for attachment to stringers
• Material: Hot‑dip galvanized steel according to ISO 1461
• Reversible step

Use

• Minimum stair pitch 27° (with 50 mm overlap)
• Conforms to French accessibility standards (ERP and APH)

Installation

• Fixed to stringers with 12 mm diameter bolts (available on request)

Technical data
Width (mm): 900 | 1000 | 1200 | 1400
Depth (mm): 330 | 330 | 330 | 330
Height (mm): 50 | 50 | 50 | 75
Mass (kg/p): 7.1 | 7.8 | 9.2 | 10.7

Characteristics / technical specifications

• Material: Hot‑dip galvanized steel according to ISO 1461
• Reversible step
• Perforated edging for attachment to stringers
• Minimum stair pitch 27° (with 50 mm overlap)
• Conforms to French accessibility standards (ERP and APH)
• Installation: Fixed to stringers with 12 mm diameter bolts (available on request)
• Available widths (mm): 900, 1000, 1200, 1400
• Depth (mm): 330
• Height (mm): 50 (for widths 900–1200), 75 (for width 1400)
• Mass (kg/p): 7.1 (900 mm), 7.8 (1000 mm), 9.2 (1200 mm), 10.7 (1400 mm)
