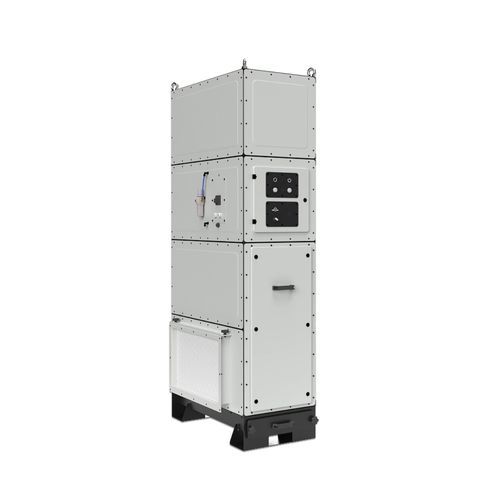

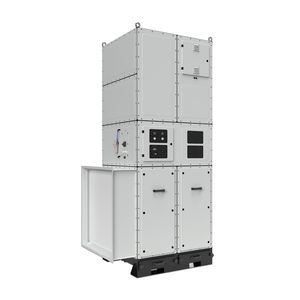

Cartridge filtration system FPMXL-02 series

with filter cartridgefor welding fumesdust

Product overview
Designed for extraction and filtration of dry airborne contaminants generated by welding, cutting and grinding. The FPMXL-02 model is the smallest variant in the series; a compact solution for small workstations, laboratories and point-extraction systems. Despite its compact footprint, it provides effective filtration through cartridge filters with automatic cleaning. Suitable for installations with limited space.

Features

• compact footprint
• purpose-built for point extraction
• effective source extraction
• safety and ergonomic handling
• modular design
• simple and safe cartridge handling

Application

• welding
• soldering
• grinding of steel and stainless steel components
• cutting
• polishing

Construction

• steel frame with sheet metal cover
• vertically mounted cartridge filter elements
• automatic cleaning system for filter elements
• one dust drawer with a capacity of 20 dm³
• two cartridge filter elements with total filtration area up to 60 m²

FPMXL-02 parameters (table)
Category | Parameter | Air flow max | Power supply | Power | PTFE / eXtreme surface | Dust drawer | Drawing No
CORE - FPMXL-02-022 | air flow max: 2000 m³/h | power supply: 3~400V | 50Hz | power: 2.2 kW | PTFE / eXtreme surface: 48 m² / 60 m² | dust drawer: 1 x 20 dm³ | Drawing No: 105758-022C
CORE - FPMXL-02-040 | air flow max: 2000 m³/h | power supply: 3~400V | 50Hz | power: 4.0 kW | PTFE / eXtreme surface: 48 m² / 60 m² | dust drawer: 1 x 20 dm³ | Drawing No: 105723-040C
PRO - FPMXL-02-022 | air flow max: 2000 m³/h | power supply: 3~400V | 50Hz | power: 2.2 kW | PTFE / eXtreme surface: 48 m² / 60 m² | dust drawer: 1 x 20 dm³ | Drawing No: 105758-022P
PRO - FPMXL-02-040 | air flow max: 2000 m³/h | power supply: 3~400V | 50Hz | power: 4.0 kW | PTFE / eXtreme surface: 48 m² / 60 m² | dust drawer: 1 x 20 dm³ | Drawing No: 105723-040P

Individual product cards / variants

• CORE | PRO
• FPMXL-02-022 (CORE / PRO) — Drawing Nos: 105758-022C (CORE), 105758-022P (PRO)
• FPMXL-02-040 (CORE / PRO) — Drawing Nos: 105723-040C (CORE), 105723-040P (PRO)

Technical specifications

• Model: FPMXL-02 (variants: FPMXL-02-022, FPMXL-02-040)
• Maximum air flow: 2000 m³/h
• Power supply: 3~400V | 50Hz
• Installed motor power: 2.2 kW (022) or 4.0 kW (040)
• Filter cartridge area (PTFE / eXtreme surface): 48 m² / 60 m²
• Dust drawer capacity: 1 x 20 dm³
• Construction: steel frame with sheet metal cover; vertically mounted cartridge elements; automatic cleaning system
• Design: compact, modular, intended for source extraction at small workstations and laboratories
