Cartridge filtration system FPMXL-08 series

for welding fumesdustself-cleaning

Product summary

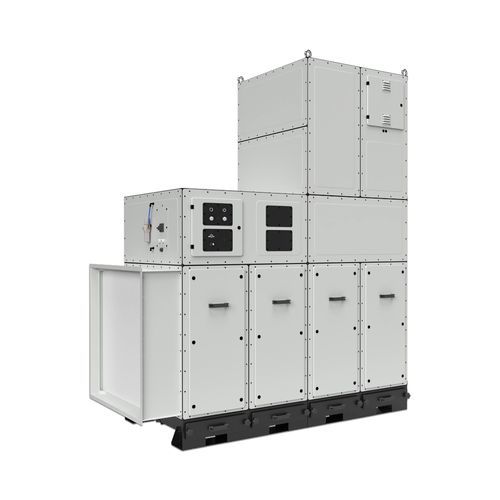

The FPMXL-08 is a cartridge dust collector designed for continuous operation in high-dust industrial environments. Eight independent cartridge modules provide staged filtration and extended service intervals. The unit is intended for central extraction systems in larger production halls and workshops.

Features

• Eight independent filter cartridges for modular operation
• Efficient source extraction compatible with welding and grinding processes
• Safe handling and ergonomics for maintenance tasks
• Modular design for easy installation and service
• Automatic reverse-pulse cleaning for sustained performance

Application

• Welding fume extraction
• Brazing and soldering fumes
• Grinding of steel and stainless steel components
• Cutting operations producing dust
• Polishing and finishing processes

Construction

• Sturdy steel frame with full-sheet metal covering
• Vertically mounted cartridge filter elements for compact footprint
• Automatic filter cleaning system (pulse-jet)
• 4 dust drawers, 4 x 20 dm³ (each drawer 20 dm³)
• 8 cartridge filters with total filtration area up to 240 m²

FPMXL-08 parameters
Header: Model | max air flow | power supply | frequency | power | PTFE surface / eXtreme | dust drawer | drawing No
CORE
FPMXL-08-075 | 6000 m³/h | 3~400V | 50 Hz | 7.5 kW | 192 m² / 240 m² | 4 x 20 dm³ | 103863-075C
FPMXL-08-110 | 8000 m³/h | 3~400V | 50 Hz | 11 kW | 192 m² / 240 m² | 4 x 20 dm³ | 103863-110C
FPMXL-08-150 | 12000 m³/h | 3~400V | 50 Hz | 15 kW | 192 m² / 240 m² | 4 x 20 dm³ | 103863-150C
PRO
FPMXL-08-075 | 6000 m³/h | 3~400V | 50 Hz | 7.5 kW | 192 m² / 240 m² | 4 x 20 dm³ | 103863-075P
FPMXL-08-110 | 8000 m³/h | 3~400V | 50 Hz | 11 kW | 192 m² / 240 m² | 4 x 20 dm³ | 103863-110P
FPMXL-08-150 | 12000 m³/h | 3~400V | 50 Hz | 15 kW | 192 m² / 240 m² | 4 x 20 dm³ | 103863-150P

Technical specifications

• Model: FPMXL-08 (CORE and PRO variants)
• Number of filter cartridges: 8 independent modules
• Max air flow (versions): 6000 m³/h, 8000 m³/h, 12000 m³/h
• Power supply: 3~400V | 50 Hz
• Power (versions): 7.5 kW, 11 kW, 15 kW
• Filter area: 192 m² / 240 m² (dependant on filter media)
• Dust drawers: 4 x 20 dm³ (each drawer 20 dm³)
• Automatic filter element cleaning (pulse-jet)
• Sturdy steel frame with sheet metal covering
• Vertically mounted cartridge filter elements
• Available drawing / product numbers: 103863-075C, 103863-110C, 103863-150C, 103863-075P, 103863-110P, 103863-150P
