Cartridge filtration system FPMXL-12 series
with filter cartridgefor welding fumesdust

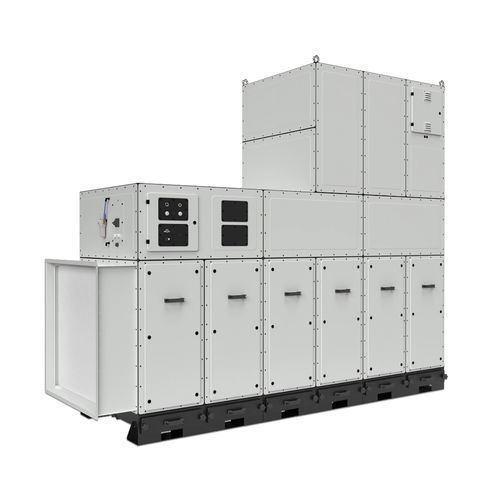

Cartridge filtration system - FPMXL-12 series - MENEGON - with filter cartridge / for welding fumes / dust
Cartridge filtration system - FPMXL-12 series - MENEGON - with filter cartridge / for welding fumes / dust
Add to favorites
Compare this product
Go to the MENEGON website for more information

Characteristics

Technology
with filter cartridge, cartridge
Designed for
dust, for welding fumes
Applications
for grinding machines, for factory
Other characteristics
automatic, modular, self-cleaning, high-throughput, high-capacity
Flow

8,000 m³/h, 12,000 m³/h
(282,517.334 ft³/h, 423,776.001 ft³/h)

Description

Product overview
FPMXL-12 is the top model of the series: an industrial cartridge-filter dust extraction system with twelve cartridge filters. It is designed to treat large volumes of contaminated air in heavy-duty plants such as steelworks, large workshops and three-shift operations. The unit offers a large filtration area and modular expansion options.

Features
  • targeted capture at the source
  • high extraction capacity
  • safe and ergonomic operation
  • modular CORE/PRO design
  • easy and safe cartridge handling with automatic cleaning

Application
  • welding fumes
  • brazing and soldering
  • grinding of steel and stainless steel components
  • polishing


Construction
  • sturdy steel frame with high-quality sheet-metal enclosure
  • vertically mounted cartridge filter elements
  • automatic pulse-cleaning system for filters
  • 6 dust drawers, capacity 6 × 20 dm³ (20 L each)
  • 12 cartridge filters with total filtration area up to 360 m² (PTFE / eXtreme option: 288 m² / 360 m²)


FPMXL-12 parameters
CORE
FPMXL-12-110 | 8000 m³/h | 3~400V | 11 kW | PTFE / eXtreme: 288 m² / 360 m² | 6 × 20 dm³ | Drawing No: 103865-110C
FPMXL-12-150 | 12000 m³/h | 3~400V | 15 kW | PTFE / eXtreme: 288 m² / 360 m² | 6 × 20 dm³ | Drawing No: 103865-150C
PRO
FPMXL-12-110 | 8000 m³/h | 3~400V | 11 kW | PTFE / eXtreme: 288 m² / 360 m² | 6 × 20 dm³ | Drawing No: 103865-110P
FPMXL-12-150 | 12000 m³/h | 3~400V | 15 kW | PTFE / eXtreme: 288 m² / 360 m² | 6 × 20 dm³ | Drawing No: 103865-150P

Technical specifications
  • Model: FPMXL-12
  • Series variants: CORE and PRO
  • Number of cartridge filters: 12
  • Total filter area: up to 360 m² (PTFE / eXtreme: 288 m² / 360 m²)
  • Dust drawers: 6 × 20 dm³ (20 L each)
  • Airflow options: 8000 m³/h (110) or 12000 m³/h (150)
  • Power supply: 3~400V | 50 Hz
  • Installed motor power: 11 kW (110) or 15 kW (150)
  • Construction: steel frame, sheet-metal enclosure, vertical cartridges, automatic cleaning
  • Typical applications: welding, soldering, grinding, cutting, polishing
  • Documentation / drawing numbers: CORE 103865-110C / 103865-150C; PRO 103865-110P / 103865-150P
