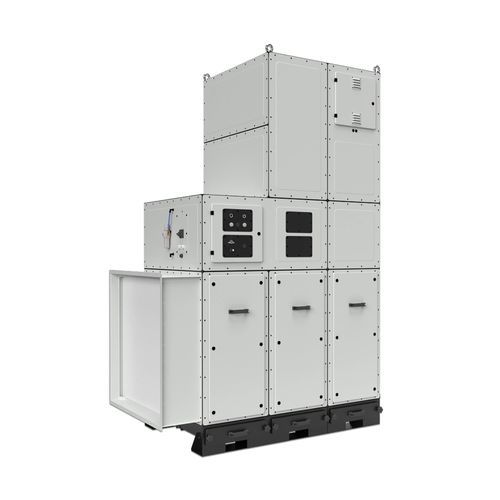

Cartridge filtration system FPMXL-06 series

suctionwith filter cartridgefume

Product overview
FPMXL-06 is an industrial multi-point dust extraction and filtration system designed for extended production lines. It provides a large filtration surface and options for PTFE/eXtreme media to enhance particle capture and airflow efficiency. Available in CORE and PRO configurations, the unit supports integration with automation and monitoring systems for continuous operation.

Features

• purpose-designed for metalworking fume and dust extraction
• efficient source extraction for multi-point installations
• operator safety and ergonomic access for maintenance
• modular design for scalable installations
• safe and simple cartridge filter handling and replacement

Application

• welding fume extraction
• soldering smoke management
• grinding of steel and stainless steel components
• polishing and finishing operations

Construction

• sturdy steel frame with high-quality sheet metal panels
• vertically mounted cartridge filter elements (6 cartridges)
• automatic filter element cleaning system (pulse-jet)
• 3 dust drawers; capacity: 3 x 20 dm³ (20 L each)
• option for PTFE / eXtreme filter media to increase filter surface up to 180 m²

FPMXL-06 parameters
CORE
Model | max air flow | power supply | motor power | filter surface (standard / eXtreme) | dust drawers | drawing No
FPMXL-06-075 | 6000 m³/h | 3~400V | 7.5 kW | 144 m² / 180 m² | 3 x 20 dm³ | 103862-075C
FPMXL-06-110 | 8000 m³/h | 3~400V | 11 kW | 144 m² / 180 m² | 3 x 20 dm³ | 103862-110C
FPMXL-06-150 | 12000 m³/h | 3~400V | 15 kW | 144 m² / 180 m² | 3 x 20 dm³ | 103862-150C
PRO
Model | max air flow | power supply | motor power | filter surface (standard / eXtreme) | dust drawers | drawing No
FPMXL-06-075 | 6000 m³/h | 3~400V | 7.5 kW | 144 m² / 180 m² | 3 x 20 dm³ | 103862-075P
FPMXL-06-110 | 8000 m³/h | 3~400V | 11 kW | 144 m² / 180 m² | 3 x 20 dm³ | 103862-110P
FPMXL-06-150 | 12000 m³/h | 3~400V | 15 kW | 144 m² / 180 m² | 3 x 20 dm³ | 103862-150P

Technical specifications

• Model: FPMXL-06 (variants: -075, -110, -150; CORE and PRO versions)
• Airflow options: 6000 m³/h, 8000 m³/h, 12000 m³/h
• Power supply: 3~400V, 50Hz
• Motor power options: 7.5 kW, 11 kW, 15 kW
• Filter configuration: 6 vertically mounted cartridge filters
• Filter surface: 144 m² (standard) / 180 m² (eXtreme/PTFE option)
• Automatic pulse-jet cleaning system included
• Dust drawers: 3 x 20 dm³ (20 L each)
• Construction: steel frame with sheet metal panels
• Suitable for integration with automation and monitoring systems
• Typical applications: welding, soldering, grinding, cutting, polishing
