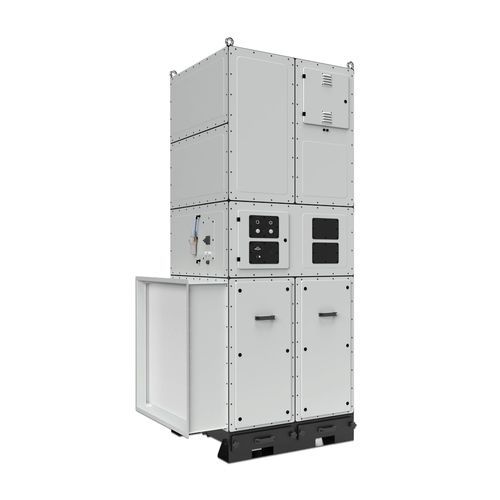

Cartridge filtration system FPMXL-04 series

particulatewith filter cartridgefor welding fumes

Overview
The FPMXL-04 is a medium-duty industrial dust collector designed for medium-sized extraction systems. Four cartridge filters enable efficient removal of dust, welding fumes and fine particles in metalworking, grinding, bulk packaging and similar production processes.

Features

• targeted extraction at the source
• efficient removal of welding fumes and fine dust
• safe, ergonomic maintenance and handling
• modular design with CORE and PRO variants
• easy and secure filter cartridge handling

Application

• welding
• soldering
• grinding of steel and stainless steel
• cutting
• polishing

Construction

• sturdy steel frame with high-quality sheet metal casing
• vertically mounted cartridge filters
• automatic filter element cleaning system
• two dust drawers (listed in construction as 2 x 20 dm³)
• four cartridge filters with total filter area up to 120 m²

FPMXL-04 parameters
CORE
FPMXL-04-040 | max air flow: 4000 m³/h | power supply: 3~400V | 50Hz | power: 4.0 kW | PTFE surface / eXtreme: 96 m² / 120 m² | dust drawer: 2 x 20 dm³ | drawing No: 103861-040C
FPMXL-04-075 | max air flow: 6000 m³/h | power supply: 3~400V | 50Hz | power: 7.5 kW | PTFE surface / eXtreme: 96 m² / 120 m² | dust drawer: 2 x 20 dm³ | drawing No: 103861-075C
FPMXL-04-110 | max air flow: 8000 m³/h | power supply: 3~400V | 50Hz | power: 11 kW | PTFE surface / eXtreme: 96 m² / 120 m² | dust drawer: 2 x 20 dm³ | drawing No: 103861-110C
PRO
FPMXL-04-040 | max air flow: 4000 m³/h | power supply: 3~400V | 50Hz | power: 4.0 kW | PTFE surface / eXtreme: 96 m² / 120 m² | dust drawer: 2 x 20 dm³ | drawing No: 103861-040P
FPMXL-04-075 | max air flow: 6000 m³/h | power supply: 3~400V | 50Hz | power: 7.5 kW | PTFE surface / eXtreme: 96 m² / 120 m² | dust drawer: 2 x 20 dm³ | drawing No: 103861-075P
FPMXL-04-110 | max air flow: 8000 m³/h | power supply: 3~400V | 50Hz | power: 11 kW | PTFE surface / eXtreme: 96 m² / 120 m² | dust drawer: 2 x 20 dm³ | drawing No: 103861-110P

Technical specifications

• Model: FPMXL-04 (CORE / PRO variants available)
• Number of cartridge filters: 4 (vertically mounted)
• Total filter area: up to 120 m² (96 m² for some configurations)
• Max air flow options: 4000 m³/h, 6000 m³/h, 8000 m³/h
• Power options: 4.0 kW; 7.5 kW; 11 kW
• Power supply: 3~400V | 50Hz
• Automatic filter element cleaning system
• Dust drawers: 2 x 20 dm³ (construction); some table entries list 2 x 20 m³
• Sturdy steel frame with sheet metal casing
• Typical applications: welding, soldering, grinding, cutting, polishing
