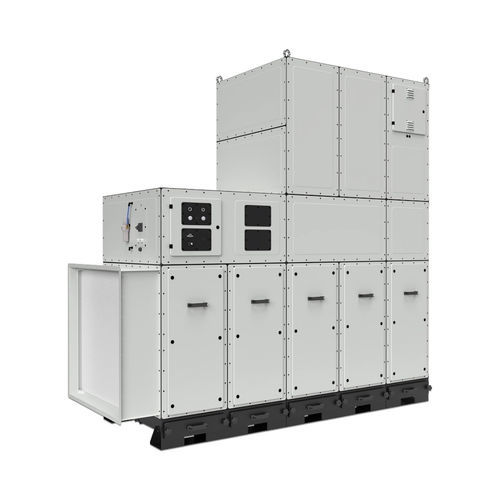

Cartridge filtration system FPMXL-10 serieswith filter cartridgefor welding fumesdust
Add to favorites
Compare this product
Characteristics
- Technology
- with filter cartridge, cartridge
- Designed for
- dust, for welding fumes
- Applications
- for grinding machines
- Other characteristics
- automatic, compact, modular, stainless steel, self-cleaning, high-capacity
- Flow
8,000 m³/h, 12,000 m³/h
(282,517.334 ft³/h, 423,776.001 ft³/h)
Description
Product descriptionFPMXL-10 is designed for continuous dust extraction in multi-station work areas, pneumatic conveying systems and processes with highly dusty materials. The integrated automatic filter-cleaning system supports extended uninterrupted operation and reduces manual maintenance frequency.
Features
Application
Construction
FPMXL-10 parameters
Technical specifications
Features
- targeted extraction at sources and multiple workstations
- high extraction capacity per model
- safety-focused layout and ergonomic access
- modular configuration for site-specific setups
- safe, straightforward handling of filter cartridges and dust drawers
Application
- welding fume extraction
- soldering smoke removal
- grinding of steel and stainless steel components
- polishing dust extraction
Construction
- robust steel frame fully enclosed with high-quality sheet metal
- vertically mounted cartridge filter elements for compact footprint
- automatic pulse-cleaning system for cartridges
- 5 dust drawers with a capacity of 5 × 20 dm³ each
- 10 cartridge filters providing a total filtration area up to 300 m²
FPMXL-10 parameters
- CORE — FPMXL-10-110 | Max air flow: 8,000 m³/h | Power supply: 3~400V 50Hz | Power: 11 kW | PTFE surface / eXtreme: 240 m² / 300 m² | Dust drawers: 5 × 20 dm³ | Drawing No: 103864-110C
- CORE — FPMXL-10-150 | Max air flow: 12,000 m³/h | Power supply: 3~400V 50Hz | Power: 15 kW | PTFE surface / eXtreme: 240 m² / 300 m² | Dust drawers: 5 × 20 dm³ | Drawing No: 103864-150C
- PRO — FPMXL-10-110 | Max air flow: 8,000 m³/h | Power supply: 3~400V 50Hz | Power: 11 kW | PTFE surface / eXtreme: 240 m² / 300 m² | Dust drawers: 5 × 20 dm³ | Drawing No: 103864-110P
- PRO — FPMXL-10-150 | Max air flow: 12,000 m³/h | Power supply: 3~400V 50Hz | Power: 15 kW | PTFE surface / eXtreme: 240 m² / 300 m² | Dust drawers: 5 × 20 dm³ | Drawing No: 103864-150P
Technical specifications
- Models: FPMXL-10-110, FPMXL-10-150 (CORE and PRO variants)
- Max air flow: 8,000 m³/h (110), 12,000 m³/h (150)
- Power supply: 3~400V | 50Hz
- Power: 11 kW (110), 15 kW (150)
- PTFE surface / eXtreme: 240 m² / 300 m²
- Dust drawers: 5 × 20 dm³
- Filter elements: 10 vertically mounted cartridge filters; automatic pulse-cleaning system
- Construction: sturdy steel frame with high-quality sheet-metal enclosure
