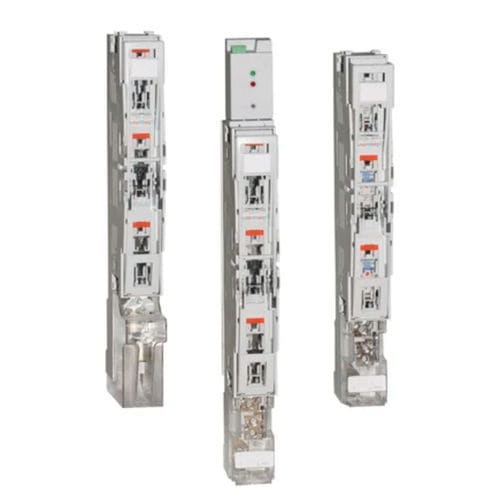

Fuse switch disconnector MULTIVERT®

low-voltage4-poleAC

MULTIVERT® NH vertical fuse switch disconnectors meet all functions of NH fuse switch disconnectors. They are designed for installation on to bus bars in triple pole arrangements. MULTIVERT® 160A triple pole switching are for installation on to 100 mm and 185 mm bus bar systems. MULTIVERT® 160A are designed for NH fuse-links in accordance with IEC/EN 60269-2, VDE 0636-2, size 00: 160A. The system is a modular system, that allows the installation of individual components. MULTIVERT® offer the user the possibility of fast and easy installation as well as a high degree of protection during installation and maintenance. Key features & benefits Installation on to 100 and 185mm bus bar system Symmetrical switch - top/bottom cable terminal connection Touch protection IP 30 with central cover Parking position of switch operating cover even with fuse-links inserted Varieties of cable termination: screw, clamp strap, AlCu clamp, frame clamp, V-terminal Electronic fuse monitoring or indicator for switch door position - optional Safe on load connection/disconnection in accordance with IEC 60947-3 Applications House incoming units Meter distribution units Switch boards for industrial applications Residential and industrial distribution units Cable distribution cabinets Feeder pillars
