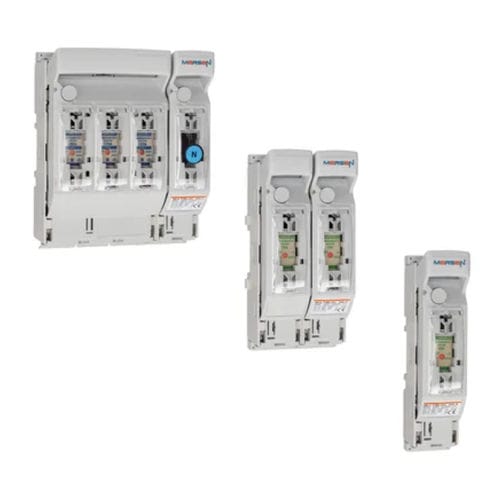

Switch disconnector with NH fuse MULTIBLOC® 00.ST8 series
fuselow-voltageIEC

switch disconnector with NH fuse
switch disconnector with NH fuse
switch disconnector with NH fuse
Add to favorites
Compare this product


Characteristics

Type
fuse
Voltage level
low-voltage
Other characteristics
with NH fuse, IEC, modular, single-pole, VDE, 4-pole, 2-pole
Primary current

160 A

VAC

690 V

Description

Approvals & Standards • IEC/EN 60 947-3 • For NH-fuse links size 000/00 in accordance with IEC/EN 60 269-2, VDE 0636-2 The production programme of MULTIBLOC® series 00.ST8 comprises NH fuse switch disconnectors for 160A. They are designed for bottom fitting/panel installation and are available in single pole, double pole and quadruple pole units. For installation of MULTIBLOC® NH fuse switch disconnectors in distribution units with central cover, respective covers are used to obtain a uniform profile in height and length. MULTIBLOC® size 00 are designed for NH fuse-links in accordance with IEC/EN 60269-2, VDE 0636-2, size 00, 160A. MULTIBLOC® offers the user the possibility of fast and easy installation as well as a high degree of security during installation and maintenance. • Touch protection IP 20 - when fuse link is in test mode IP rating is maintained • Parking position of switch operating cover even with fuse-links inserted • Modular system of cover - cover for cable termination area can be extended - optional • Varieties of cable termination: screw, clamp strap, Al-Cu clamp, extendable for V-terminal - optional • Padlocking and sealing of switch door cover - optional • Indicating switch for switch door position - optional • Safe on load connection/disconnection in accordance with IEC 60947-3
