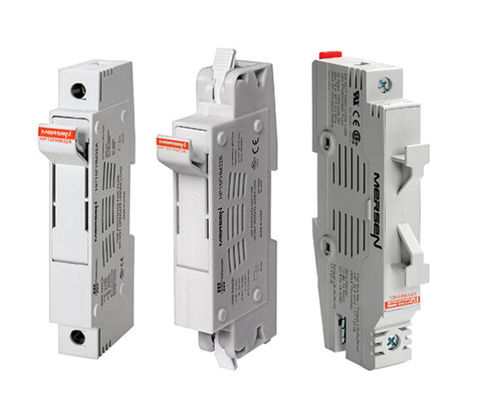

Cylindrical fuse holder HelioProtection® HP15FHM32 series

DIN railClass gPVUL

Mersen’s 1500VDC HelioProtection fuse holders for 10/14x85mm gPV fuses introduce the next level of safety for Utility scale photovoltaic applications. The HP15FHM32 fuse holders are also IP20 finger safe, with a rotating fuse carrier like the Mersen UltraSafe® fuse holders. The US15M1HEL fuse holders are finger safe up to an IP20 grade of protection, and feature a pull out, pivoting fuse carrier. All bodies feature high performance UL 94 V-0 rated polymer material, providing superior flammability rating, with exceptional durability and dielectric withstand properties. The HP15FHM32 series input and output terminals accept standard PV rated wiring and comb bus bars, providing added versatility for end-use installations.The US15M1HEL is designed with terminals to accept standard stock bus bar eliminating the need for custom combed bus bar, saving cost, time and simplifying installation. Key features & benefits UL 94 V-0 Material Flammability Rating IP20 rated (finger safe) 35 mm DIN Rail Mounting Accepts 10/14 x 85mm gPV fuses Applications All Utility scale photovoltaic applications 1500VDC Combiner Boxes
